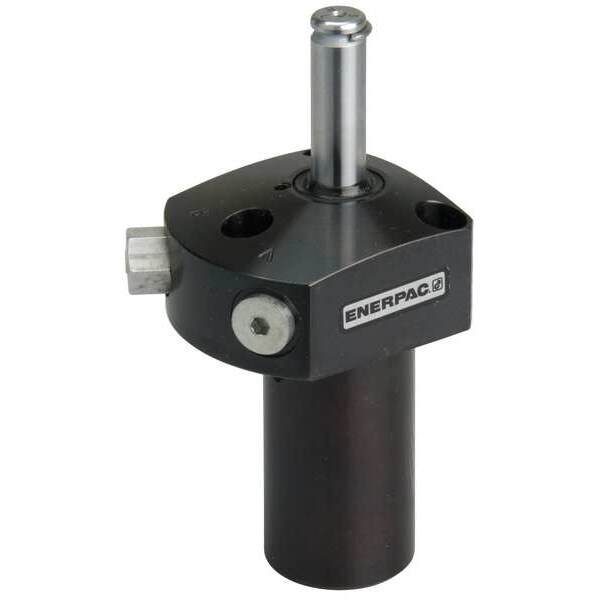

Swing Cylinder, Upper Flange, 475 lb
Mfr # SURS21
Zoro # G0719975
product price:Â $685.99
/ea
Free Shipping & Returns
Key Features
Single Acting/Double Acting
Single Acting
Clamping Force
475 lbf
Total Stroke
0.65 in
Clamping Stroke
0.32 in
Effective Area Clamped
0.12 sq in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
SURS21
Zoro #
G0719975
UPC #
662005231119
Country of Origin
United States
Dimensions
Port Size
#2 SAE
Min. Hole Depth
0.63 in
Outside Dia.
1.1 in
Mounting Hole Dia.
0.23 in
Bolt Size
#10-32
Extended Height
4.41 in
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Single Acting, Turns Right, Clamping Force 475 lbf, Total Stroke 0.65 in, Effective Area Clamped 0.12 sq in, Clamping Stroke 0.32 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #2 SAE, Effective Area Unclamped 0.24 sq in, Oil Capacity Clamped 0.08 cu in, Oil Capacity Unclamped 0.15 cu in, Max. Oil Flow 12 cu in/min, Pressure Range 500 to 5000 psi
