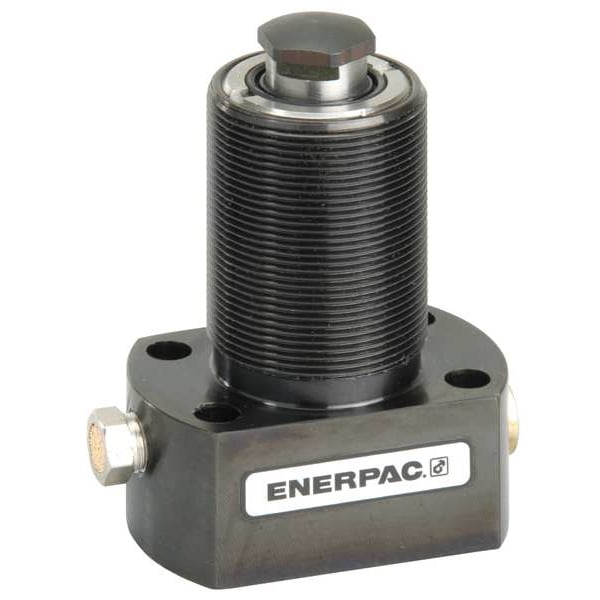

WFL111, 2,500 lbs Capacity, 0.40 in Stroke, Work Support, Lower Flange, Hydraulic Advance
Mfr # WFL111
Zoro # G1926495
product price:Â $392.99
/ea
Free Shipping & Returns
Key Features
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Lower Flange
Stroke Length
3/8 in
Material of Construction
Steel/Bronze
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WFL111
- Zoro #
- G1926495
- UPC #
- 662005311361
- Country of Origin
- United States
Dimensions
- Stroke Length
- 3/8 in
- Outside Dia.
- 1 3/8 in
- Plunger Dia.
- 0.629 in
- Retracted Height
- 3.54 in
- Oil Port Size
- #4 SAE
- Extended Height
- 3.91 in
Details
- Item
- Hydraulic Work Support
- Application
- Hold
- Includes
- Contact Button, Manifold Seal
- Type
- Lower Flange
- Material of Construction
- Steel/Bronze
- Function
- Fluid Advanced
- Pressure Range
- 700 to 5000 psi
- Plunger Contact Spring Force Retracted
- 5.2 lbf
- Max. Support Force
- 2,500 lbf
- Oil Capacity
- 0.06 cu in
- Max. Oil Flow
- 60 cu in/min
- Body Thread
- 1-3/8"-18
- Plunger Contact Spring Force Extended
- 3.4 lbf
- Stroke
- 0.38"
- Max. Pressure
- 5,000 psi
- Mounting Style
- Lower Flange
- Material
- Bronze, Steel
- Series
- WFL
Description
Hydraulic Work Support, Lower Flange, Bronze, Steel, Max. Support Force 2,500 lbf, Stroke Length 3/8 in, Pressure Range 700 to 5000 psi, Retracted Height 3.54 in, Body Thread 1-3/8 In.-18, Series WFL, Plunger Contact Spring Force Extended 3.4 lbf, Plunger Contact Spring Force Retracted 5.2 lbf, Oil Capacity 0.06 cu in, Max. Oil Flow 60 cu in/min, Oil Port Size #4 SAE, Extended Height 3.91 in, Outside Dia. 1 3/8 in, Plunger Dia. 0.629 in, Includes Contact Button, Manifold Seal
