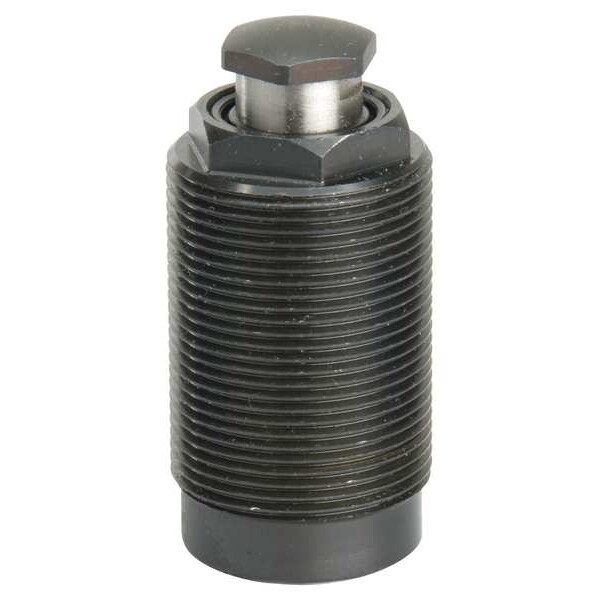

WFM71, 1,650 lbs Capacity, 0.39 in Stroke, Work Support, Manifold Mount, Hydraulic Advance
Mfr # WFM71
Zoro # G1081324
product price: $407.99
/ea
Free Shipping & Returns
Key Features
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Manifold Mount
Stroke Length
3/8 in
Function
Fluid Advanced
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WFM71
Zoro #
G1081324
UPC #
662005311231
Country of Origin
United States
Dimensions
Stroke Length
3/8 in
Retracted Height
2.63 in
Extended Height
3 in
Outside Dia.
1 1/4 in
Plunger Dia.
0.591 in
Details
Item
Hydraulic Work Support
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Manifold Mount
Function
Fluid Advanced
Body Thread
1-1/4"-16
Oil Capacity
0.04 cu in
Max. Oil Flow
40 cu in/min
Plunger Contact Spring Force Extended
2 lbf
Max. Support Force
1,650 lbf
Stroke
0.38"
Material of Construction
Steel/Bronze
Pressure Range
700 to 5000 psi
Plunger Contact Spring Force Retracted
5.8 lbf
Max. Pressure
5,000 psi
Mounting Style
Manifold Mount
Material
Bronze, Steel
Series
WFM
Description
Hydraulic Work Support, Manifold Mount, Bronze, Steel, Max. Support Force 1,650 lbf, Stroke Length 3/8 in, Pressure Range 700 to 5000 psi, Retracted Height 2.63 in, Body Thread 1-1/4 In.-16, Series WFM, Plunger Contact Spring Force Extended 2 lbf, Plunger Contact Spring Force Retracted 5.8 lbf, Oil Capacity 0.04 cu in, Max. Oil Flow 40 cu in/min, Extended Height 3 in, Outside Dia. 1 1/4 in, Plunger Dia. 0.591 in, Includes Contact Button, Manifold Seal
