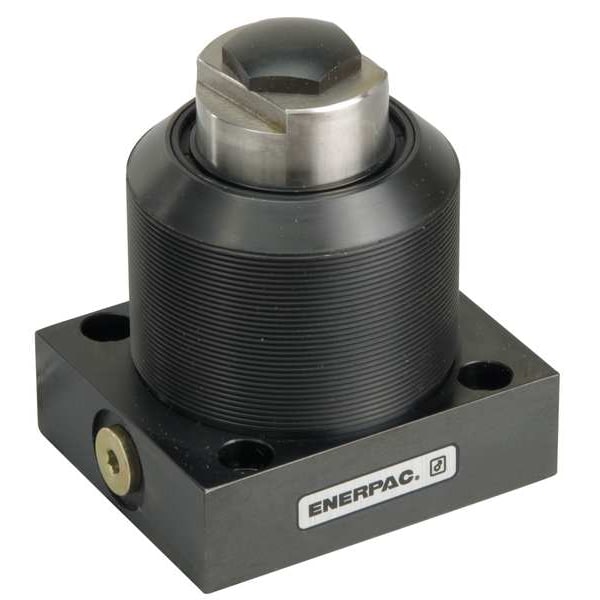

Work Support, Flange, Spring Adv, 5000 lb
Mfr # WSL221
Zoro # G2167873
product price:Â
$
703.00
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Lower Flange
Stroke Length
3/8 in
Function
Spring Advanced
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WSL221
- Zoro #
- G2167873
- UPC #
- 662005129355
- Country of Origin
- United States
Dimensions
- Stroke Length
- 3/8 in
- Oil Port Size
- #4 SAE
- Outside Dia.
- 2 5/8 in
- Extended Height
- 3.8 in
- Retracted Height
- 3.53 in
- Plunger Dia.
- 1.496 in
Details
- Item
- Hydraulic Work Support
- Application
- Hold
- Includes
- Contact Button, Manifold Seal
- Type
- Lower Flange
- Function
- Spring Advanced
- Material of Construction
- Steel/Bronze
- Plunger Contact Spring Force Retracted
- 19.5 lbf
- Max. Oil Flow
- 190 cu in/min
- Plunger Contact Spring Force Extended
- 2.1 lbf
- Stroke
- 0.41"
- Pressure Range
- 700 to 5000 psi
- Oil Capacity
- 0.19 cu in
- Max. Support Force
- 5,000 lbf
- Body Thread
- 2-5/8"-20
- Max. Pressure
- 5,000 psi
- Mounting Style
- Lower Flange
- Material
- Bronze, Steel
- Series
- WSL
Description
Hydraulic Work Support, Lower Flange, Bronze, Steel, Max. Support Force 5,000 lbf, Stroke Length 3/8 in, Pressure Range 700 to 5000 psi, Retracted Height 3.53 in, Body Thread 2-5/8 In.-20, Series WSL, Plunger Contact Spring Force Extended 2.1 lbf, Plunger Contact Spring Force Retracted 19.5 lbf, Oil Capacity 0.19 cu in, Max. Oil Flow 190 cu in/min, Oil Port Size #4 SAE, Extended Height 3.8 in, Outside Dia. 2 5/8 in, Plunger Dia. 1.496 in, Includes Contact Button, Manifold Seal
