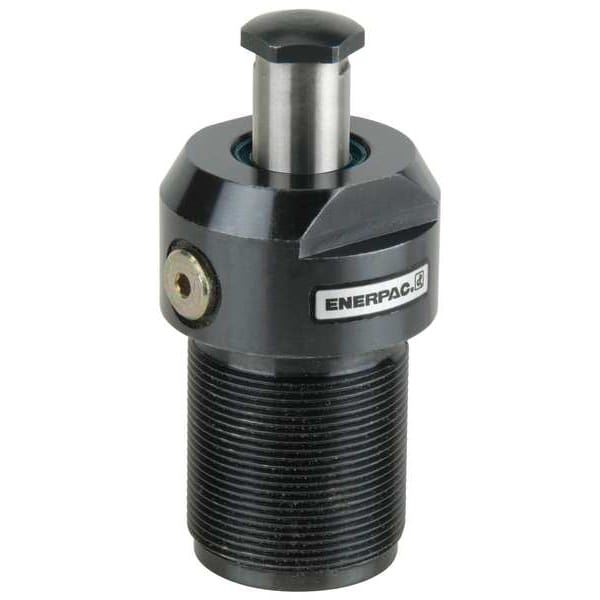

Work Support, Threaded, Spring Adv, 1650 lb
Mfr # WST71
Zoro # G2510961
product price:Â
$
484.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Application
Hold
Includes
Contact Button, Manifold Seal
Type
Threaded Body
Stroke Length
3/8 in
Function
Spring Advanced
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WST71
- Zoro #
- G2510961
- UPC #
- 662005311408
- Country of Origin
- United States
Dimensions
- Stroke Length
- 3/8 in
- Extended Height
- 3.51 in
- Retracted Height
- 3.13 in
- Outside Dia.
- 1 3/8 in
- Plunger Dia.
- 0.591 in
- Oil Port Size
- #2 SAE
Details
- Item
- Hydraulic Work Support
- Application
- Hold
- Includes
- Contact Button, Manifold Seal
- Type
- Threaded Body
- Function
- Spring Advanced
- Max. Support Force
- 1,650 lbf
- Body Thread
- 1-3/8"-18
- Pressure Range
- 700 to 5000 psi
- Material of Construction
- Steel/Bronze
- Stroke
- 0.38"
- Max. Oil Flow
- 40 cu in/min
- Plunger Contact Spring Force Extended
- 2 lbf
- Plunger Contact Spring Force Retracted
- 5.8 lbf
- Oil Capacity
- 0.04 cu in
- Max. Pressure
- 5,000 psi
- Series
- WST
- Material
- Bronze, Steel
- Mounting Style
- Threaded Body
Description
Hydraulic Work Support, Threaded Body, Bronze, Steel, Max. Support Force 1,650 lbf, Stroke Length 3/8 in, Pressure Range 700 to 5000 psi, Retracted Height 3.13 in, Body Thread 1-3/8 In.-18, Series WST, Plunger Contact Spring Force Extended 2 lbf, Plunger Contact Spring Force Retracted 5.8 lbf, Oil Capacity 0.04 cu in, Max. Oil Flow 40 cu in/min, Oil Port Size #2 SAE, Extended Height 3.51 in, Outside Dia. 1 3/8 in, Plunger Dia. 0.591 in, Includes Contact Button, Manifold Seal
