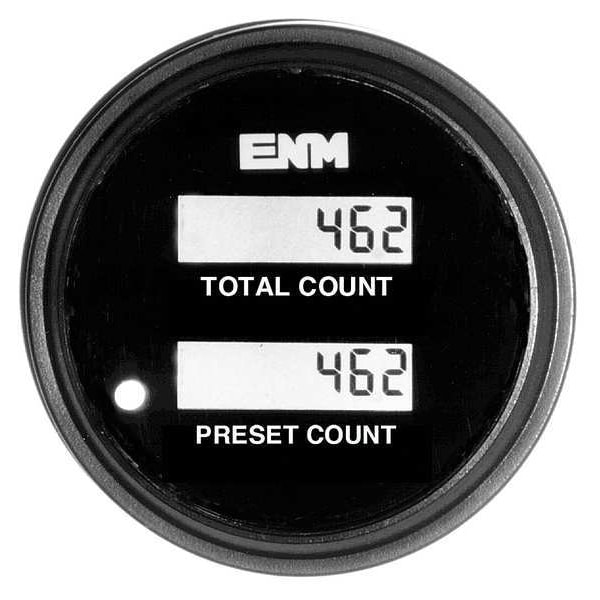

Enm Electronic Counter, 6 Digits, LCD PC1210G0 - main

Electronic Counter, 6 Digits, LCD

  • Mfr # PC1210G0

  • Zoro # G5389307

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Mounting
Panel
Reset Type
Remote Signal
Display
LCD
Number of Digits
6
Depth
1.51 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PC1210G0
Zoro #
G5389307
UPC #
-
Country of Origin
United States

Dimensions

Depth
1.51 in
Diameter
2.31 in
Character Height
0.276 in Numbers
Manufacturers Warranty Length
1 yr
Length
1.35"
Digit Height - Maximum
0.27 in
Overall Diameter
2 5/8 in
Overall Depth
1 5/8 in
Cutout Diameter
2 in
Cutout Height
2 in

Details

Item
Electronic Counter
Mounting
Panel
Reset Type
Remote Signal
Display
LCD
Number of Digits
6
Output Rating
0.2A @ 40V DC
IP Rating
IP67
Preset
Yes
Special Features
Non-Volatile Memory (no battery). Solid State Electronics.
NEMA Rating
12, 4X
Output
Relay and LED
Series
PC12
Connector Type
10 Pin Connector
Scaler
No
Interface
None
Includes
10 Pin Connector Harness
Min. On/Off Pulse
25 msec
Fits
2 in Panel Cutout
Input Signal
85 to 265V AC/90 to 360V DC
Max. Counts per Second
20
Prescaling Range
1 to 999,999
Power Required
6 mA
Accuracy
+/-0.01%
Power Rating
2VA
Input Voltage
85 to 265V AC; 90 to 360V DC
Switch Output Rating
0.2A @ 265VAC, 0.2A @ 40VDC
Relay
Yes
Fits Panel Cut Out
2 in
Counts
999,999
NEMA Enclosure Rating
4X
Mounting Style
Panel
Output Type
Relay
Counter Display Type
LCD
Counts per Second - Maximum
20
Count Speed - Maximum
75 Hz
Digit Color
Green/Yellow
Features
Non-Volatile Memory, Polarity Insensitive For The DC Power Input, Quartz Crystal, Self Programmable or Factory Set, Solid State Electronics

Description

Electronic Counter, Number of Digits 6, LCD Display, Character Height 0.276 in Numbers, Max. Counts per Second 20, Input Signal 85 to 265V AC/90 to 360V DC, Output Rating 0.2A @ 40V DC, Output Relay and LED, Mounting Panel, Diameter 2.31 in, Depth 1.51 in, Series PC12, Scaler No, Preset Yes, Power Required 6 mA, Min. On/Off Pulse 25 msec, Prescaling Range 1 to 999,999, Reset Type Remote Signal, Interface None, Connector Type 10 Pin Connector
