  11. 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

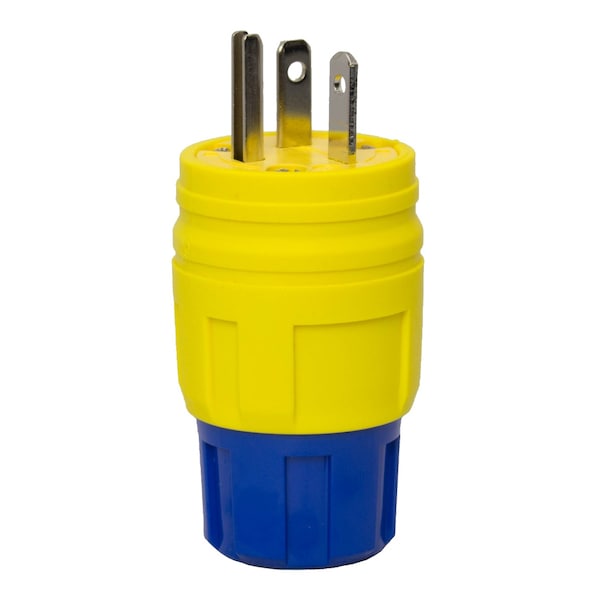

Ericson 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded 1510-PW6P - main

5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 1510-PW6P

  • Zoro # G9715402

product price: $25.99
/ea

Key Features

NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1510-PW6P
Zoro #
G9715402
UPC #
782862824764
Country of Origin
United States

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
2
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
CSA C22.2, UL 498
NEMA Configuration
NEMA 5-15
Sub Brand / Trademark
Perma-Tite
Environmental Rating
Watertight (IP69K)
CSA
CSA Certified to CSA C22.2 No 42, File 31943
Ideal Application
Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
cETL
cETL Listed to CSA C22.2 No 42
Case Qty
100
ETL
ETL Listed to ANSI/UL 498
Device Type
Plug
UL
UL Listed to ANSI/UL 498, File E17740
NSF
NSF/ANSI/3-A 14159-1
Blade Style
Straight
Poles / Wires
2P/3W

Description

Plug Nema 5-15,Perma-Tite Extreme Grade
