  11. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow

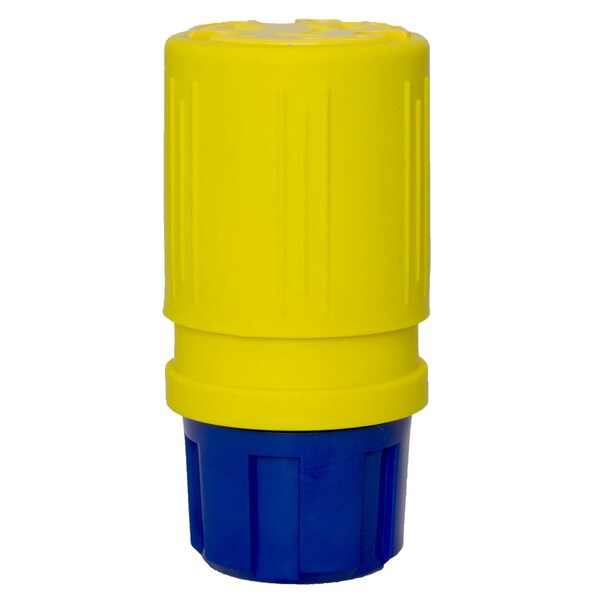

Ericson Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow 1612-C - main

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Spring Clamp Terminals, Yellow

  • Mfr # 1612-C

  • Zoro # G7166483

product price: $21.15
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1612-C
Zoro #
G7166483
UPC #
782862587515
Country of Origin
United States

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Spring Clamp Terminals
Connection Orientation
Straight
Housing Color
Yellow
Cap Type
No Cap or Cover
Maximum Operating Temperature
100 Degrees C
Minimum Operating Temperature
-40 Degrees C
Standards
CSA Certified to CSA C22.2 No.42, File 31943, ETL Listed to ANSI/UL 498, UL Listed to ANSI/UL 498, File E17740, cETL Listed to CSA C22.2 No. 42
Resistance Properties
Chemica Resistant, Crush Resistant, Dust and Moisture Seal
Sub Brand / Trademark
Perma-Link
UL
UL Listed to ANSI/UL 498, File E17740
CSA
CSA Certified to CSA C22.2 No.42, File 31943
ETL
ETL Listed to ANSI/UL 498
Poles / Wires
2P/3W
Environmental Rating
Indoor
Device Type
Connector
NEMA Configuration
NEMA 5-20
Case Qty
100
cETL
cETL Listed to CSA C22.2 No. 42
Blade Style
Straight

Description

Connector Nema 5-20,Perma-Link Indust.
