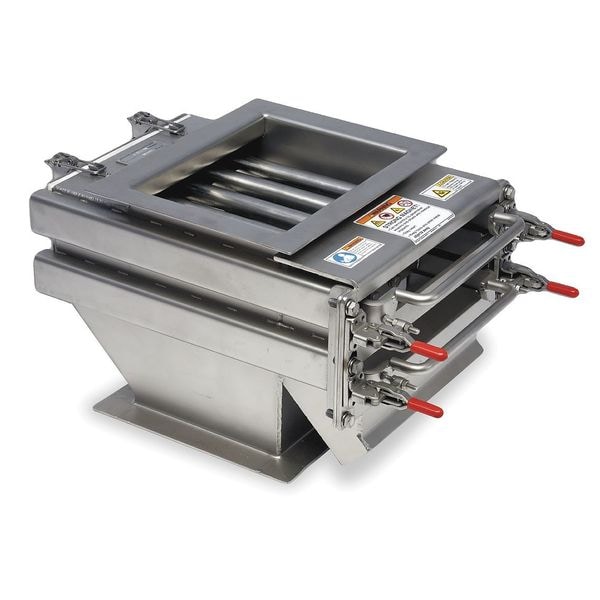

Grate In Housing, Rare Earth, 6 x 8 1/2

Mfr # 135706P
Zoro # G7150507

5,384.99

Free Shipping & Returns

Key Features

Magnetic Separator Type

Rectangular Grate Magnet with Housing

Primary Magnet Material

Rare Earth

Maximum Magnetic Pull Strength

80 oz

Magnetic Intensity

10,700 gauss

Grate Shape

Rectangle

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 135706P
Zoro #: G7150507
UPC #: -
Country of Origin: China

Dimensions

Overall Length: 6 in
Overall Width: 8 1/2 in
Overall Height: 11 1/4 in
Flange Width (In.): 1-1/2"
Inlet/Outlet Length (In.): 8-1/2
Width (In.): 8-1/2
Height (In.): 11-1/4
Cutout Height (In.): 11-1/4
Inlet/Outlet Width (In.): 6
Length (In.): 6
Tube Magnet Diameter: 1 in
Wire Rope Length: 6 in
Length: 6 in

Details

Magnetic Separator Type: Rectangular Grate Magnet with Housing
Primary Magnet Material: Rare Earth
Maximum Magnetic Pull Strength: 80 oz
Magnetic Intensity: 10,700 gauss
Grate Shape: Rectangle
Item: Grate Magnet with Housing
Max. Pull on Contact: 80 Ounces At The Surface With 1/4" Diameter Steel Test Ball
Housing Material: 304 Stainless Steel
Temp. Range (F): 0 Deg. to 150 Deg.
Free Flowing Material: Powder or Granular
Magnet Housing Material: Stainless Steel
Intensity Range (Gauss): 10,700
Magnet Type: Rare Earth
For Free Flowing Material Type: Dry Granular, Dry Powder
Frame Material: Stainless Steel
Max. Operating Temp.: 150 Degrees F
Number of Magnetic Tubes: 4

Description

Grate Magnet with Housing, Maximum Magnetic Pull Strength 80 oz, Rectangle, 6 in Overall Length, 8 1/2 in Overall Width, 11 1/4 in Overall Height, Number of Magnetic Tubes 4, Tube Magnet Diameter 1 in, Rare Earth, Stainless Steel Frame Material

Restrictions

Hazardous material
