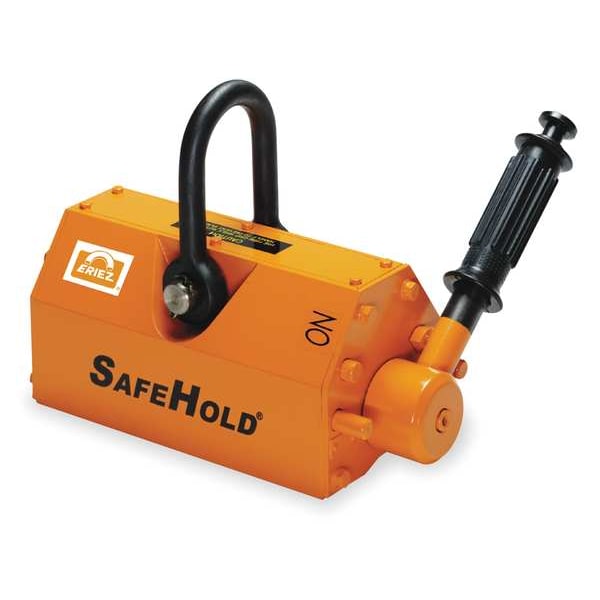

Lifting Magnet, 1500 lb. Cap, 10-23/32" L
Mfr # RPL-15
Zoro # G7652257
product price: $1,126.99
/ea
Free Shipping & Returns
Key Features
Required Material Thickness for Max Rated Capacity
2 in
Magnet Width
4 7/8 in
Magnet Height
9 1/8 in
Max. Rated Flat Capacity
1,500 lb
Magnet Material
Ceramic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RPL-15
Zoro #
G7652257
UPC #
-
Country of Origin
China
Dimensions
Required Material Thickness for Max Rated Capacity
2 in
Magnet Width
4 7/8 in
Magnet Height
9 1/8 in
Max. Rated Capacity @ Min. Activation Thickness
260 lb
Overall Height
8 5/8 in
Bail Opening Width
2 9/32 in
Overall Length
10 3/4 in
Min. Material Thickness for Activation
1/4 in
Magnet Length
9 1/8 in
Handle Length
8 3/4 in
Bail Opening Height
4 in
Overall Width
4 7/8 in
Minimum Thickness for Activation
1/4 in
Bail Thickness
5/8 in
Bail Inside Length
2 3/8 in
Minimum Thickness for Maximum Load Capacity
1 3/4 in
Bail Inside Width
2 1/4 in
Description
Lifting Magnet, Maximum Flat Load Capacity 1,500 lb, Maximum Round Load Capacity 750 lb, Minimum Thickness for Activation 1/4 in, Minimum Thickness for Maximum Load Capacity 1 3/4 in, Activation Mechanism Pull Lever, Magnet Length 9 1/8 in, Magnet Width 4 7/8 in, Magnet Height 9 1/8 in, Overall Length 10 3/4 in, Overall Width 4 7/8 in, Overall Height 8 5/8 in, Bail Inside Width 2 1/4 in, Bail Inside Length 2 3/8 in, Handle Length 8 3/4 in, Minimum Operating Temperature 0 Degrees F
Restrictions
Hazardous material
