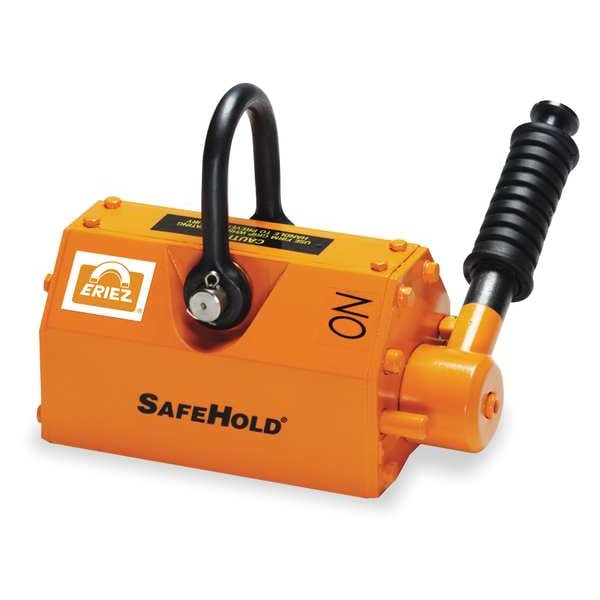

Lifting Magnet, 750 lb. Cap, 7-3/4" L
Mfr # RPL-7
Zoro # G7648903
product price: $697.99
/ea
Free Shipping & Returns
Key Features
Max. Heat Resistant Temp.
175 Degrees F
Magnet Activation
Locking On/Off Handle
Magnet Height
7 1/8 in
Bail Opening Height
3 17/32 in
Magnet Material
Ceramic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RPL-7
Zoro #
G7648903
UPC #
-
Country of Origin
China
Dimensions
Magnet Height
7 1/8 in
Bail Opening Height
3 17/32 in
Magnet Length
6 3/8 in
Required Material Thickness for Max Rated Capacity
2 in
Overall Height
7 1/8 in
Max. Rated Capacity @ Min. Activation Thickness
250 lb
Bail Opening Width
1 13/16 in
Min. Material Thickness for Activation
1/4 in
Overall Length
7 3/4 in
Handle Length
7 1/2 in
Magnet Width
3 5/8 in
Overall Width
3 5/8 in
Minimum Thickness for Maximum Load Capacity
1 in
Minimum Thickness for Activation
1/4 in
Bail Inside Length
1 7/8 in
Bail Thickness
7/16 in
Bail Inside Width
1 7/8 in
Description
Lifting Magnet, Maximum Flat Load Capacity 750 lb, Maximum Round Load Capacity 375 lb, Minimum Thickness for Activation 1/4 in, Minimum Thickness for Maximum Load Capacity 1 in, Activation Mechanism Pull Lever, Magnet Length 6 3/8 in, Magnet Width 3 5/8 in, Magnet Height 7 1/8 in, Overall Length 7 3/4 in, Overall Width 3 5/8 in, Overall Height 7 1/8 in, Bail Inside Width 1 7/8 in, Bail Inside Length 1 7/8 in, Handle Length 7 1/2 in, Minimum Operating Temperature 0 Degrees F
Restrictions
Hazardous material
