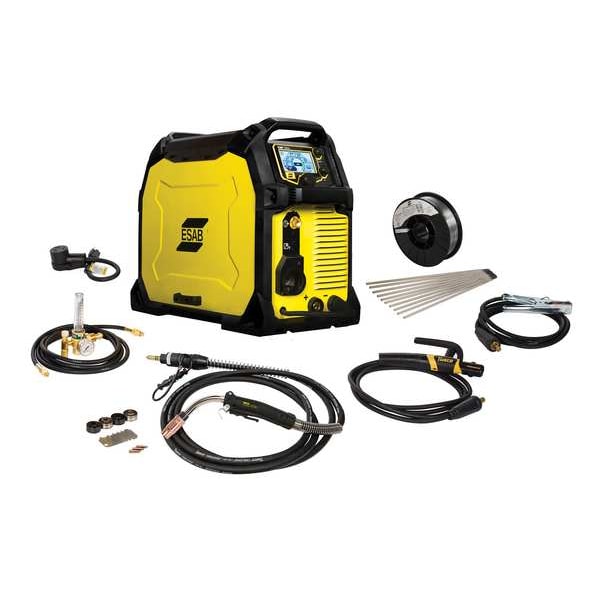

Esab Multiprocess Welder, Three Phase, 350A 0558102556 - main

Multiprocess Welder, Three Phase, 350A

  • Mfr # 0558102556

  • Zoro # G3240378

product price: $5,364.99
/ea
Free Shipping & Returns

Key Features

Series
Rebel EMP 285ic
Standards
CSA E60974-1-00, IEC60974-1, UL60974-1
Includes
0.035 in Wire, Contact Tips, Drive Rolls, Electrode Holder, ESAB Atom Arc 7018 Electrodes, Return Clamp with Leads, Spray Master Velocity 350A MIG Gun, Victor Argon Flowmeter Regulator with 12.5 ft Hose
Input Voltage
460V AC, 575V AC
Features
TFT Multi-lingual Display
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
0558102556
Zoro #
G3240378
UPC #
662067196876
Country of Origin
Multiple

Dimensions

Overall Height (In.)
19-1/5
Overall Width (In.)
11-1/2
Overall Depth (In.)
11-1/2
Aluminum - Material Thickness
18 ga to 3/8 in
Power Cord Length
10 ft
Overall Height
19.5 in
Maximum Wire Diameter
0.52 in (Aluminum), 0.52 in (Mild Steel), 0.52 in (Stainless Steel), 1/16 in (Flux Cored)
Minimum Wire Diameter
0.030 in (Aluminum), 0.030 in (Flux Cored), 0.030 in (Mild Steel), 0.030 in (Stainless Steel)
Overall Width
11.5 in
For Minimum Material Thickness
0.52 in (Solid Wire), 1/16 in (Cored Wire), 3/16 in (TIG Rods), 5/32 in (Stick Electrodes)
Overall Depth
26.5 in
For Maximum Material Thickness
1/2 in

Details

Item
Multiprocess Welder
Series
Rebel EMP 285ic
Standards
CSA E60974-1-00, IEC60974-1, UL60974-1
Includes
0.035 in Wire, Contact Tips, Drive Rolls, Electrode Holder, ESAB Atom Arc 7018 Electrodes, Return Clamp with Leads, Spray Master Velocity 350A MIG Gun, Victor Argon Flowmeter Regulator with 12.5 ft Hose
Input Voltage
460V AC, 575V AC
Features
TFT Multi-lingual Display
Phase
Three-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Duty Cycle
MIG (GMAW/FCAW) 285 A / 28 V @ 40% (1ph) 285 A / 28 V @ 50% (3ph), Stick (SMAW) 260 A / 30 V @ 40% (1ph) 285 A / 31 V @ 50% (3ph), TIG (GTAW) 285 A / 21 V @ 40% (1ph) 285 A / 21 V @ 50% (3ph)
OCV
68
Output Range
5 to 350A (3ph)
Hz
50/60
Rated Output
MIG (GMAW) 285 A / 28 V @ 50%, Stick (SMAW) 285 A / 31 V @ 50% (3ph), TIG (GTAW) 285 A / 30 V @ 50% (3ph)
Polarity
DC
Application
Industrial Welding
Function
MIG, Stick, DC Tig
Maximum Wire Feed Speed
800 in/min
MIG Welding Maximum Output Current
350 A
Weight
70 lb
For Wire Type
Aluminum, Flux-Cored, Solid
Welding Mode
CC/CV
Input Frequency
50/60 Hz
Remote Connection Type
8-Pin (ESAB)
MIG Welding Minimum Output Current
5 A
Minimum Wire Feed Speed
60 in/min
MIG Welding Output @ Duty Cycle
200 A @ 24 V, 100%, 265 A @ 60%, 285 A @ 28 V, 50%
TIG Welding Output @ Duty Cycle
220 A @ 19 V, 100%, 285 A @ 21 V, 50%, 285 A @ 21 V, 60%
Stick Welding Output @ Duty Cycle
180 A @ 27 V, 100%, 255 A @ 30 V, 60%, 285 A @ 31 V, 50%
Amperage Range
5 A to 350 A
Plug Type
Bare Leads
Stick Welding Maximum Output Current
350 A
Stick Welding Minimum Output Current
5 A
Color
Yellow
TIG Welding Maximum Output Current
350 A
Open Circuit Voltage
68 V DC
TIG Welding Minimum Output Current
5 A
Model
0558102556
Max. Input Current
350 A
For Material Type
Aluminum, Flux-Cored, Mild Steel, Stainless Steel
Power Cord Included
No

Description

Multiprocess Welder, Series Rebel EMP 285ic, Input Voltage 460V AC, 575V AC, Phase Three-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 350 A, TIG Welding Maximum Output Current 350 A, MIG Welding Maximum Output Current 350 A, For Wire Type Aluminum, Flux-Cored, Solid
