Shop All Variable Pitch V-Belt Pulleys
Essick Air

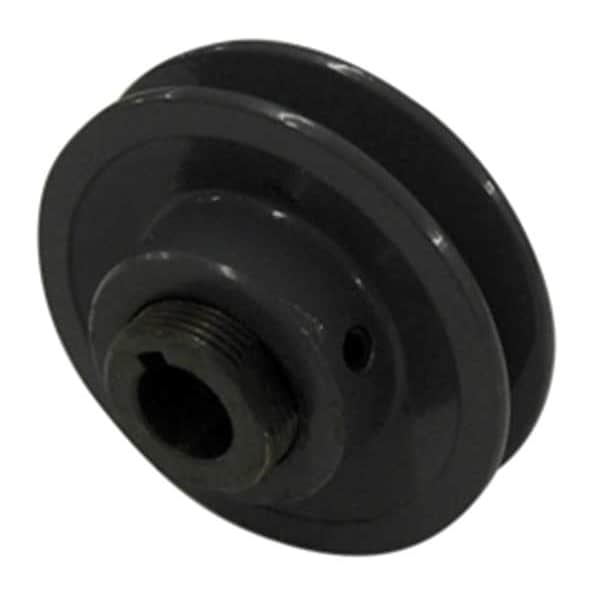

1-1/8" Fixed Bore 2 Groove Variable Pitch Pulley 3.5" OD
Mfr # 110291
Zoro # G2341087
product price: $154.99
/ea
Free Shipping & Returns
$154.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- For V-Belt Section 3L, 4L, 5L, A, AX, B, BX
- 3L Belt Pitch Dia. 2.70 in to 3.50 in
- Pulley Material Cast Iron
- Pulley Type Variable Pitch V-Belt Pulley
- Keyway Size 0.25" x 0.125"
Product Information
- Brand Essick Air
- MFR # 110291
- Zoro # G2341087
- UPC # 009009900908
- Country of Origin China
- Category Variable Pitch V-Belt Pulleys
Dimensions
3L Belt Pitch Dia. | 2.70 in to 3.50 in |
Keyway Size | 0.25" x 0.125" |
Fits Shaft Dia. | 1-1/8 in |
4L, A, or AX Belt Pitch Dia. | 2.9 in to 3.9 in |
Pulley Bore Dia. | 1 1/8 in |
Pulley Outside Dia. | 3.5 in |
Keyway Size Type | 0.25 in x 0.125 in |
5L, B, or BX Belt Pitch Dia. | 3 in to 4 in |
5L Pitch Diameter (Maximum) | 4 in |
B Pitch Diameter (Minimum) | 3 in |
4L Pitch Diameter (Minimum) | 2.9 in |
AX Pitch Diameter (Minimum) | 2.9 in |
Bore Diameter | 1 1/8 in |
BX Pitch Diameter (Maximum) | 4 in |
3L Pitch Diameter (Minimum) | 2.7 in |
AX Pitch Diameter (Maximum) | 3.9 in |
B Pitch Diameter (Maximum) | 4 in |
For Belt Trade Size | 3L, 4L, 5L, A, AX, B, BX |
5L Pitch Diameter (Minimum) | 3 in |
BX Pitch Diameter (Minimum) | 3 in |
A Pitch Diameter (Minimum) | 2.9 in |
3L Pitch Diameter (Maximum) | 3.5 in |
Maximum Pitch Diameter | 3.50 in (3L), 3.9 in (4L, A, AX), 4 in (5L, B, BX) |
A Pitch Diameter (Maximum) | 3.9 in |
4L Pitch Diameter (Maximum) | 3.9 in |
Outside Diameter | 3.5 in |
Details
Description
Variable Pitch V-Belt Pulley, Bore Diameter 1 1/8 in, Standards ISO 9001: 2008, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Classical, Cogged, Micro-Ribbed, Material Cast Iron, Maximum Pitch Diameter 3.50 in (3L), 3.9 in (4L, A, AX), 4 in (5L, B, BX), Number of Grooves 2, Outside Diameter 3.5 in, Set Screw Location 180 Degrees from Keyway, 90 Degrees Apart, 3L Pitch Diameter (Maximum) 3.5 in, 3L Pitch Diameter (Minimum) 2.7 in, 4L Pitch Diameter (Maximum) 3.9 in
