  11. BioBlue 40X-400X Monocular Portable Compound Microscope w/ 5MP USB 3 Digital Camera
This item is Discontinued.

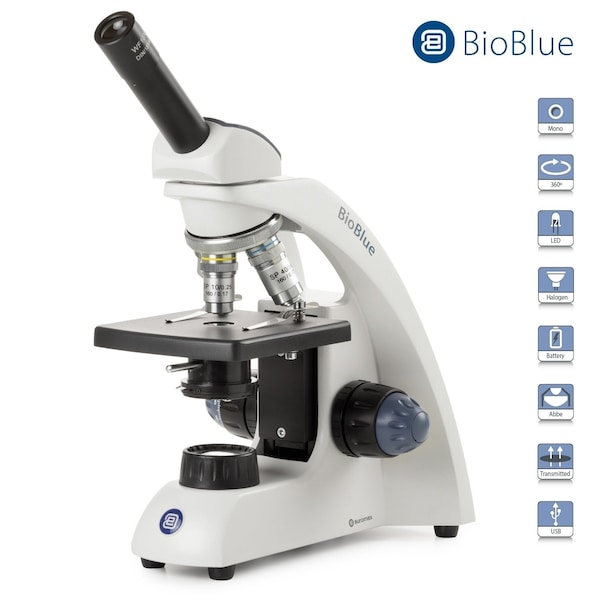

Euromex BioBlue 40X-400X Monocular Portable Compound Microscope w/ 5MP USB 3 Digital Camera BB4200-5M3

BioBlue 40X-400X Monocular Portable Compound Microscope w/ 5MP USB 3 Digital Camera (Discontinued)

  • Mfr # BB4200-5M3
  • Zoro # G003753597
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BB4200-5M3
Zoro #
G003753597
UPC #
195585003048
Country of Origin
China

Details

Item
Monocular Portable Compound Microscope
Magnification Range
40X-400X
Head Type
Monocular
Magnification - Eyepiece Lens
10X
Magnification - Objective Lens
4X, 10X, 40X
Light Source
LED
Power Supply
100-240V
Condenser Type
Abbe Condenser N.A. 1.25
Includes
Microscope, Power Cord, Dust Cover, Spare Fuse, Camera, User Manual

Description

Extensive experience of Euromex optical engineers has contributed to the development & implementation of the BioBlue series w/ the finest optical components & performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes w/ primary focus on ergonomics & today’s quality Standards.


These microscopes are supplied w/ secured eyepieces & adjustable rack stop to prevent damage to sample & objectives. The DIN WF 10x/18 eyepieces & the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue BB4200 generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus & centered. The 120 x 120 mm plain stage enable precision positioning of the specimen.


Features :


  • Monocular w/ 45° inclined tubes
  • 1W LED illumination w/ rechargeable batteries & integrated power supply
  • WF10x/18mm eyepiece(s)
  • Ergonomic Stand
  • Reversed nosepiece for four semi plan objectives
  • Coaxial coarse & fine adjustments w/ rack stop
  • Height adjustable abbe condenser w/ iris diaphragm & filter holder

    • Specifications :


    EYEPIECE(S)


  • WF10x/18 mm Wide field
  • Secured & w/ pointer for monocular models

    • HEAD


  • All heads are 360° rotatable & secured
  • Monocular model w/ 45° inclined tubes

    • NOSEPIECE


  • Reversed quadruple nosepiece on ball bearings.

    • OBJECTIVES


  • Supplied w/ semi plan 4x/0.10, 10x/0.25, 40x/0.65 oil immersion objectives
  • All optics are anti-fungus treated & anti-reflection coated for maximum light throughput

    • FOCUSING


  • Coaxial coarse & fine adjustments w/ 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
  • Total travel approximately 23 mm
  • Supplied w/ an adjustable rack stop to prevent damage to sample & objectives
  • The coarse adjustment is equipped w/ friction control

    • STAGE


  • 120 x 120 mm plain stage supplied w/ two non-removable object clamps

    • POLARIZATION EQUIPMENT


  • The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp

    • CONDENSER


  • Height adjustable Abbe condenser N.A. 1.25 w/ iris diaphragm & filter holder

    • Restrictions
