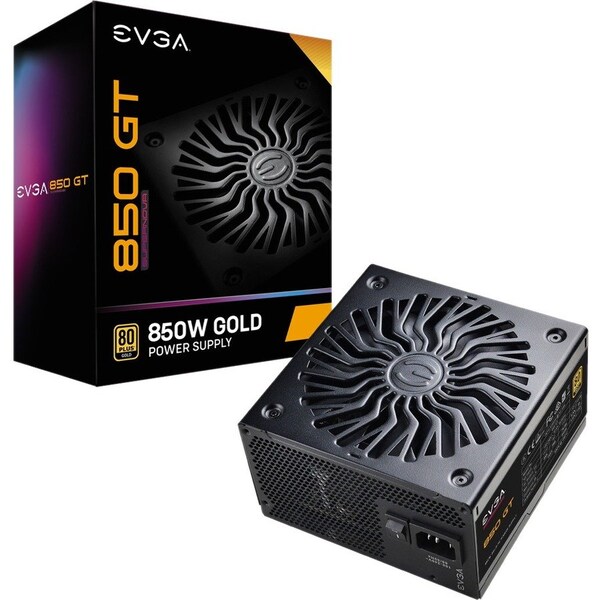

EVGA 220-GT-0850-Y1 220-Gt-0850-Y1 Supernova 850 GT 850W 80 Plus Gold Fully Modular Power Supply Unit with FDB Fan (Discontinued)

Every home needs an electronics expert, someone who can decide if it makes sense to buy the latest equipments. If you are a gadget freak, our Electronics catalog is your dream destination. If you’re still stuck at the basics, our elaborate product specifications shall handhold you through the purchase.

• 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
• Fully Modular to reduce clutter and improve airflow
• 100% Japanese Capacitors + OVP, UVP, OCP, OPP, SCP, and Dual OTP Protections
• Fluid Dynamic Bearing Fan and EVGA Auto ECO Mode for ultra-quiet operation and increased lifespan

• Type: ATX12V / EPS12V
• Maximum Power: 850W
• Fans: 1 x 135mm Fluid Dynamic Bearing Fan
• PFC: Active
• Main Connector: 20+4Pin
• +12V Rails: Single
• PCI-Express Connector: 6 x 6+2-Pin
• SATA Power Connector: 9
• Haswell Support: Yes
• Modular: Full Modular
• Efficiency: 90% or higher (under typical load)
• Energy-Efficient: 80 PLUS GOLD Certified
• Input Voltage: 100 - 240 V
• Input Frequency Range: 50/60 Hz
• Input Current: 10 - 5A
• Output: +3.3V at 20A, +5V at 20A, +12V at 70.8A, -12V at 0.3A, +5Vsb at 3A
• MTBF: 100,000 Hours
• Approvals: TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement
• Size: 3.39" x 5.91" x 5.91"
• Max PSU Length: 150 mm
• Weight: 4 lbs
