Exair

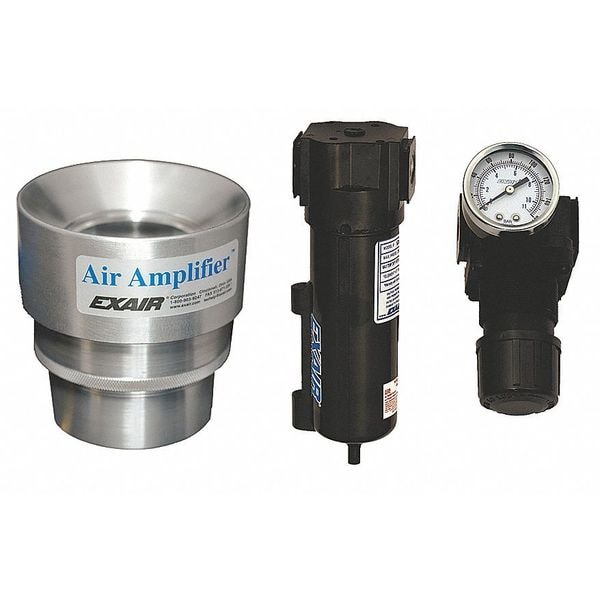

Air Amplifier Kit, 1.25 In Inlet, 12.9 CFM

product price: $378.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Output Adjustable
  • Material Aluminum
  • CFM @ 80 PSI 12.9 cfm
  • Amplification Ratio 16
  • Air Output Volume CFM @ 80 psi 618 cfm
See all product information

Product Information

Dimensions

Inside Dia. 0.84 in
Discharge Dia. 1 1/4 in
Inlet Dia. 1.25 in
Overall Length 2 7/8 in
Flow Pattern Width at 3 Inches 2 in
Inlet Size 1/4 in
Flow Pattern Width at 12 Inches 4 11/16 in
Inlet Diameter 1 1/4 in
Flow Pattern Width at 18 Inches 6 1/2 in
Flow Pattern Width at 6 Inches 2 7/8 in

Details

Item Air Amplifier Kit
Output Adjustable
Material Aluminum
CFM @ 80 PSI 12.9 cfm
Amplification Ratio 16
Air Output Volume CFM @ 80 psi 618 cfm
Air Inlet 1/4 in NPT
Max. dBA 81 dBA
Pressure Range 5 to 120 psi
Temp. Rating 275 Degrees F
Includes Adjustable Air Amplifier
Body Material Aluminum
Air Output Volume @ 80 psi 206 scfm
Includes Filter Separator Filter Separator Included
Includes Shims Shims Not Included
System of Measurement Inch
Includes Pressure Regulator Pressure Regulator Included
Output Type Adjustable
Maximum Operating Temperature 275 Degrees F
Air Consumption 12.9 scfm
Maximum Sound Level 81 dBA
Maximum Operating Pressure 80 psi
Air Output Volume at 6 Inches 618 scfm
Air Inlet Type NPT
Minimum Operating Pressure 5 psi
Standards CE, EU Directive 2001/95/EC, EU Directive 2006/42/EC
For Fluid Type Compressed Air
Product Type Air Amplifier Kit

Description

Air Amplifier Kit, Amplification Ratio 16, Inlet Size 1/4 in, Air Inlet Type NPT, Inlet Diameter 1 1/4 in, Discharge Dia. 1 1/4 in, Maximum Sound Level 81 dBA, Body Material Aluminum, Air Consumption 12.9 scfm, Air Output Volume @ 80 psi 206 scfm, Output Type Adjustable, Includes Adjustable Air Amplifier, Includes Filter Separator Filter Separator Included, Includes Pressure Regulator Pressure Regulator Included, Includes Shims Shims Not Included, System of Measurement Inch
