  9. Vortex Tube, SS, 30 CFM, 2000 BtuH
Shop All Vortex Tubes
Exair

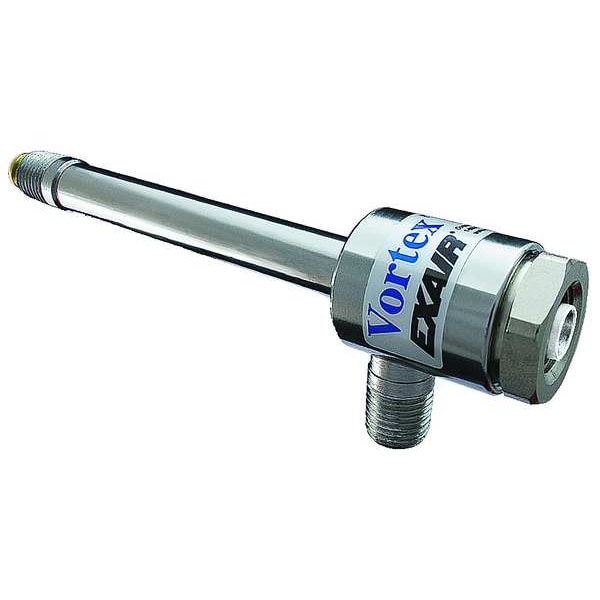

Vortex Tube, SS, 30 CFM, 2000 BtuH

product price: $295.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Stainless Steel
  • CFM @ 100 psi 30 cfm
  • BtuH @ 100 psi 2,000 BtuH
  • Air Inlet 1/4 in (M)NPT
  • Pressure Range 80 to 100 psi
See all product information

Product Information

Dimensions

Overall Length 10 3/8 in
Outside Dia. 1.9 in
Nozzle Length 1 3/8 in
Body Length 5 11/16 in
Nozzle Width 13/16 in
Body Outside Diameter 1 1/2 in
Inlet Size 1/4 in

Details

Item Vortex Tube
Material Stainless Steel
CFM @ 100 psi 30 cfm
BtuH @ 100 psi 2,000 BtuH
Air Inlet 1/4 in (M)NPT
Pressure Range 80 to 100 psi
Standards CE, EU (2001/95/EC), EU (2006/42/EC), OSHA
Differential Range 28 Degrees to 129 Degrees F
Temp. Rating 200 Degrees F
Cooling Capacity 2,000 BtuH
Maximum Operating Temperature 260 Degrees F
Maximum Differential Temperature Setting 129 Degrees F
Maximum Flow Rate 30 scfm
Minimum Operating Temperature -50 Degrees F
System of Measurement Inch
Number of Outlets 2
Minimum Differential Temperature Setting 28 Degrees F
For Fluid Type Compressed Air
Inlet Gender Male
Maximum Operating Pressure 100 psig
Body Material Stainless Steel
Maximum Sound Level 84 dBA
Minimum Operating Pressure 80 psig
Air Inlet Type NPT

Description

Vortex Tube, Maximum Flow Rate 30 scfm, Cooling Capacity 2,000 BtuH, Maximum Differential Temperature Setting 129 Degrees F, Minimum Differential Temperature Setting 28 Degrees F, Body Material Stainless Steel, Inlet Size 1/4 in, Air Inlet Type NPT, Inlet Gender Male, Maximum Sound Level 84 dBA, Maximum Operating Temperature 260 Degrees F, Minimum Operating Temperature -50 Degrees F, Nozzle Width 13/16 in, Nozzle Length 1 3/8 in, Includes -, Maximum Operating Pressure 100 psig
