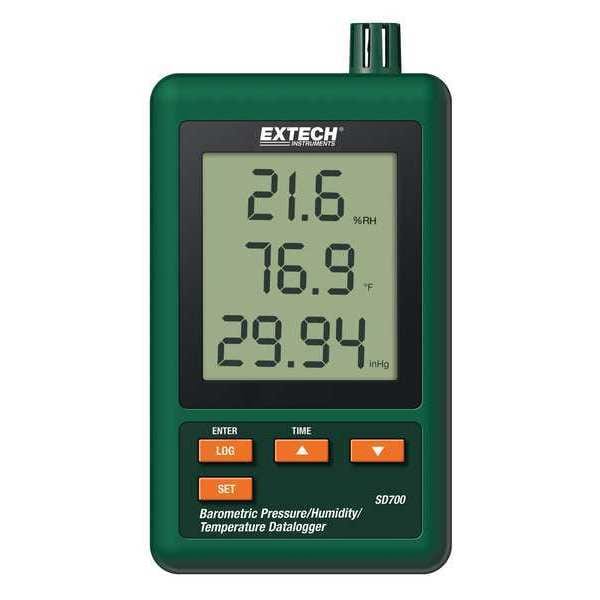

Extech Data Logger SD700 - main

Data Logger

  • Mfr # SD700

  • Zoro # G4612666

product price: $407.99
/ea
Free Shipping & Returns

Key Features

Interface
RS-232
Includes
2GB SD Card, AC Adapter, Mounting Bracket
Features
Datalogger Time Stamps and Stores Readings on a SD Card
Temp. Range (F)
32 Degrees to 122 Degrees F
Accuracy
+/-1.5 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SD700
Zoro #
G4612666
UPC #
793950437001
Country of Origin
Taiwan, Province of China

Dimensions

Height (In.)
5.2 in
Depth (In.)
1.3 in
Width (In.)
3.1 in
Overall Width
3 1/8 in
Overall Height
5 1/4 in
Manufacturer Warranty Length
2 yr
Overall Depth
1 5/16 in
Battery Size
AAA

Details

Item
Data Logger
Interface
RS-232
Includes
2GB SD Card, AC Adapter, Mounting Bracket
Features
Datalogger Time Stamps and Stores Readings on a SD Card
Temp. Range (F)
32 Degrees to 122 Degrees F
Accuracy
+/-1.5 Degrees F
Sample Point Storage
2M Data Using 2GB SD Card
Relative Humidity Range
10% to 90%
AC Adapter
9V Adaptor
Special Features
Datalogger Time Stamps and Stores Readings on a SD Card
Battery Life
Greater Than 1 mo (60 Second Sample Rate)
Pressure Range
0.29 to 3248 inHg, 10 to 1100 hPa, 7.5 to 825.0 mmHg
Calibration Certificate
No
Digital Display Screen Type
LCD
Software Options
No Software Required
Compatible Operating Systems
Windows 7, Windows 8, Windows Vista, Windows XP
Maximum Sampling Rate
600 sec
Minimum Temperature Measured Degrees F
32 Degrees F
Maximum Relative Humidity Measured
90 %
Number of Records Stored
20,000,000
Power Source
Battery
Number of Probes Included
0
Maximum Temperature Measured Degrees F
122 Degrees F
Calibration Certificate Type
Not Certified
Battery Voltage
1.5V
Batteries Included
Yes
Minimum Relative Humidity Measured
10 %
Battery Run Time
1 mo
Accuracy Degrees C
+/-0.8 Degrees
Number of Batteries Required
6
Maximum Temperature Measured Degrees C
50 Degrees C
Battery Chemistry
Alkaline
Maximum Operating Temperature Degrees F
122 Degrees F
Minimum Operating Temperature Degrees F
32 Degrees F
Parameters Measured
Pressure, Relative Humidity, Temperature Degrees C, Temperature Degrees F
Minimum Sampling Rate
5 sec
Minimum Temperature Measured Degrees C
0 Degrees C
Alert Type
Digital Display
Accuracy Degrees F
+/-1.5 Degrees

Description

Data Logger, AC Voltage Accuracy Not Applicable, Alert Type Digital Display, Current Channels Not Applicable, Maximum Dew Point Measured Not Applicable, Minimum Dew Point Measured Not Applicable, Calibration Certificate Type Not Certified, Minimum Sampling Rate 5 sec, Maximum AC Current Measurement Not Applicable, Maximum Relative Humidity Measured 90 Percent, Maximum AC Voltage Measured Not Applicable, Minimum Relative Humidity Measured 10 Percent
