  5. Digital Clamp Meter, 30 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating

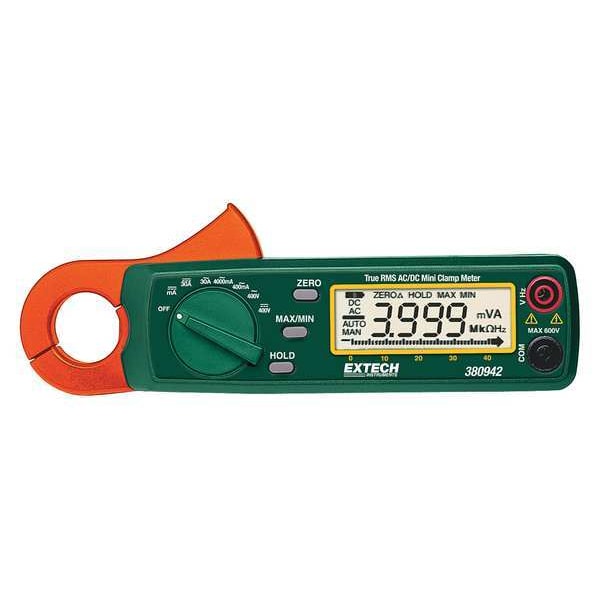

Extech Digital Clamp Meter, 30 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating 380942 - main

Digital Clamp Meter, 30 A, 0.9 in (23 mm) Jaw Capacity, CAT III 300V Safety Rating

  • Mfr # 380942

  • Zoro # G5041942

product price:  $489.99
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
400 V
Jaw Capacity
0.9 in (23 mm)
Safety Rating
CAT III 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
380942
Zoro #
G5041942
UPC #
793950389423
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
2 yr
Overall Width
1.8 in
Battery Size
AAA
Maximum Conductor Size
4/0 AWG
Overall Height
1.3 in

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
30
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
400 V
Jaw Capacity
0.9 in (23 mm)
Safety Rating
CAT III 300V
Jaw Opening
0.9 in
Max. DC Amps
30
Max. AC Volts
400 V
Calibration Frequency
60 Hz
AC Response
Average
Includes
(2) AAA Batteries, Soft Carrying Case, Test Leads
Data Hold
Yes
Memory
Max/Min
Special Features
Fast 40 Segment Bargraph, Min/Max, Data Hold and Auto Power Off, One touch Auto Zero for DC Current measurements
Counts
4,000
Battery Type
AA
Data Logging
Yes
Auto Power Off
Yes
Standards
CE, cULus
Non-Contact Voltage Detector
No
Auto Ranging
No
Diode Test
No
Audible Continuity
No
Peak Hold
No
Instrument Counts
4,000
Maximum AC Current Measurement
30 A
Display Type
LCD
Basic AC Current Accuracy
+/-2.50%
Basic DC Current Accuracy
+/-2.00%
AC Voltage Measurement Resolution
0.1 V
Inrush Current Measurable
No
Maximum DC Voltage Measurement
400 V
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage
Bluetooth Compatible
No
Bar Graph Included
Yes
Minimum AC Current Measurement
400 mA
Dustproof
No
Minimum Storage Temperature
-4 Degrees F
AC Response Calculation
TRMS
Battery Access
Yes
DC Voltage Measurement Resolution
0.1 V
Removable Screen
No
Intrinsically Safe
No
DC Current Measurement Resolution
4 A
Calibration Certificate Included
No
Thermal Imaging
No
Maximum AC Voltage Measurement
400 V
Maximum Operating Temperature
122 Degrees F
Current Leakage Testing
No
Basic AC Voltage Accuracy
+/-2.00%
Waterproof
No
Maximum Storage Temperature
140 Degrees F
AC Current Measurement Resolution
4 A
Minimum DC Current Measurement
4 A
Basic DC Voltage Accuracy
+/-1.00%
Minimum Operating Temperature
4 Degrees F
Jaw Style
Clamp-Jaw
Maximum DC Current Measurement
40 A
Batteries Included
Yes

Description

Digital Clamp Meter, Audible Continuity No, Safety Rating CAT III 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 30 A, Maximum AC Voltage Measurement 400 V, Maximum DC Current Measurement 40 A, Maximum DC Voltage Measurement 400 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No, Bluetooth Compatible No
