Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, No Range Max. AC Amps

This item is Discontinued.

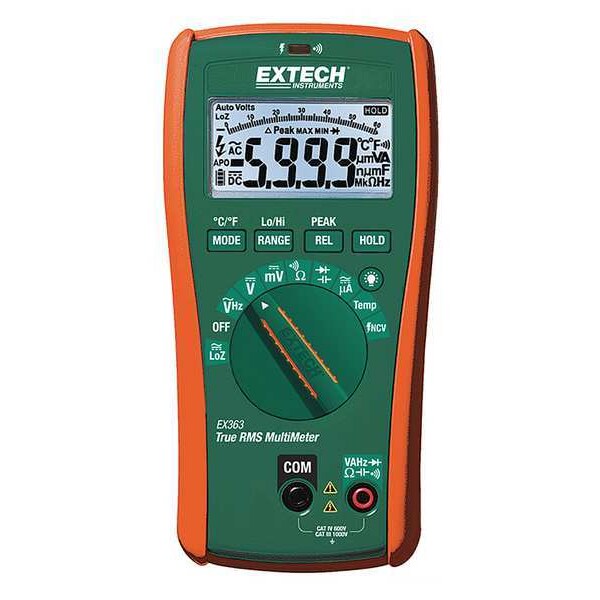

Extech Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, No Range Max. AC Amps EX363-NIST

Digital Multimeter, 1,000 Max. AC Volts, 1,000 Max. DC Volts, No Range Max. AC Amps (Discontinued)

Mfr # EX363-NIST
Zoro # G5384729

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

EX363-NIST

Zoro #

G5384729

UPC #

793950393642

Country of Origin

Taiwan, Province of China

Dimensions

Manufacturers Warranty Length

3 yr

Battery Size

Overall Height

6.5 in

Depth

1.7 in

Overall Width

3.2 in

Details

Item

Digital Multimeter

Instrument Counts

6,000

Basic DC Accuracy

+/-0.5%

Instrument Safety Rating

CAT IV 600V

Max. AC Volts

1,000

Max. DC Volts

1,000

Max. AC Amps

No Range

Max. DC Amps

No Range

Audible Continuity

Yes

Max. Ohms

40 megohm

Capacitance Range

1 nF to 10 mF

Min./Max. Memory

Data Logging

Peak Hold

Yes

Temp. Range

-40 to 1832 Degrees F (-40 to 1000 Degrees C)

Auto Power Off

Yes

Calibration Certificate Included

Yes

Auto Ranging

Yes

Data Hold

Yes

Bar Graph

Yes

Diode Test

Yes

NIST Certification By

FLIR

Series

EX36x

Special Features

11 Functions, LoZ, NCV Detector, Peak Hold, UA Current

Display

Backlit LCD

AC Response

TRMS

Includes

9V Battery, NIST Traceable Certificate of Calibration, Test Leads, Tilt Holster with Built in Magnet, Type K Bead Probe

Duty Cycle

Interface

Standards

CE, cULus

Instrument Frequency Counter Range

0.01 Hz to 100 kHz

Battery Type

9V Alkaline

Calibration Certificate

Included

Maximum AC Voltage Measurement

1,000 V

Capacitance Measurement Resolution

0.001 uF

Minimum Temperature Measurement

-40 Degrees F

Basic DC Current Accuracy

+/-1%

Minimum AC Voltage Measurement

0.1 V

Battery Chemistry

Alkaline

Style

Full Size

Computer Interface Connection Type

None

Safety Rating_BACKGROUND

EX363-NIST CAT IV 600V

Maximum Capacitance Measurement

10 mF

Maximum Resistance Measurement

40 megaohm

Minimum AC Current Measurement

0 uA

DC Voltage Measurement Resolution

0.001 V

Battery Voltage

Display Type

Backlit LCD

Multimeter Features

Standard

Bar Graph Included

Yes

Fuse Access

Yes

Basic DC Voltage Accuracy

+/-0.50%

Battery Access

Yes

Minimum Resistance Measurement

0.1 ohm

Minimum DC Current Measurement

0 mA

Basic AC Voltage Accuracy

+/-1%

Temperature Measurement Accuracy

+/-1.00%

Parameters Measured

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)

Maximum DC Voltage Measurement

1,000 V

Maximum Temperature Measurement

1,832 Degrees F

DC Current Measurement Resolution

0.1 uA

NIST Certification By Manufacturer

FLIR

Minimum DC Voltage Measurement

0.1 V

Resistance Measurement Resolution

0.1 ohm

Weight

5.9 oz

Minimum Frequency Measurement

0.01 Hz

Maximum Storage Temperature

140 Degrees F

Basic AC Current Accuracy

+/-1.5%

Frequency Measurement Resolution

0.01 Hz

Minimum/Maximum Memory

Software Included

Maximum Operating Temperature

122 Degrees F

Minimum Operating Temperature

14 Degrees F

AC Current Measurement Resolution

0.1 uA

Maximum AC Current Measurement

600 uA

Maximum DC Current Measurement

600 uA

AC Response Calculation

TRMS

AC Voltage Measurement Resolution

0.1 V

Frequency Measurement Accuracy

+/-0.10%

Capacitance Measurement Accuracy

+/-1.90%

Minimum Capacitance Measurement

1 nF

Maximum Frequency Measurement

100 kHz

Temperature Measurement Resolution

0.1 Degrees F

Resistance Measurement Accuracy

+/-1.5%

Minimum Storage Temperature

-4 Degrees F

Batteries Included

Yes

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-1 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-1 Percent, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000, Special Features 11 Functions, LoZ, NCV Detector, Peak Hold, UA Current, Maximum AC Current Measurement 600 uA, Calibration Certificate Included Yes
