Shop EXTECH

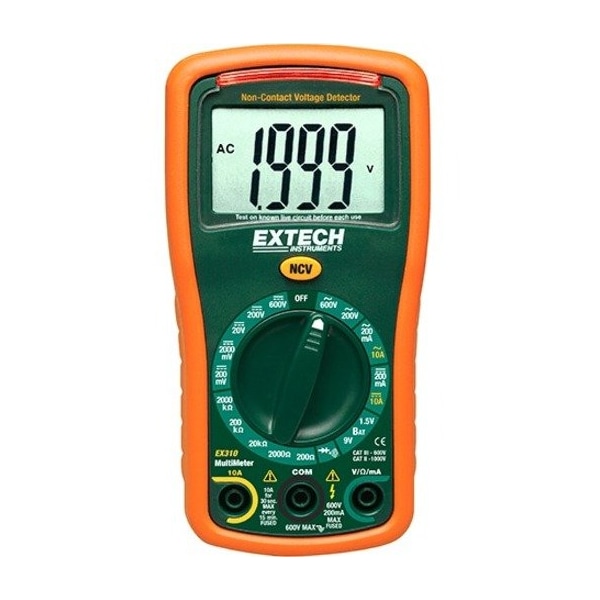

Digital Multimeter, 600 V Max DC, 0.1 V Max AC, Average, 2,000 Instrument Counts, LCD

  • Mfr # EX310

  • Zoro # G0997902

product price:  $50.99
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
2,000
Includes
Battery, Protective Holster, Test Leads, Tilt Stand
Standards
CE, cULus
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EX310
Zoro #
G0997902
UPC #
793950393109
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Overall Height
5.7 in
Overall Width
2.9 in
Depth
1.6 in
Battery Size
9V

Details

Item
Digital Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
2,000
Includes
Battery, Protective Holster, Test Leads, Tilt Stand
Standards
CE, cULus
Auto Power Off
Yes
Data Logging
No
Audible Continuity
Yes
Diode Test
Yes
Peak Hold
No
Series
EXTECH (R) EX310
Interface
None
Max. AC Amps
10:00 AM
Instrument Safety Rating
CAT II 1000V, CAT III 600V
Temp. Range
No Temp
Multimeter Style
Compact - Basic Features
Display
LCD
AC Response
Average
Calibration Certificate Included
No Certification Included
Max. Ohms
2000 kilohm
Auto Ranging
No
Max. DC Amps
10 A
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Duty Cycle
No Duty Cycle Test Included
Intrinsically Safe
No
Weight
9.17 oz
Bar Graph Included
No
Minimum DC Current Measurement
0 mA
Battery Access
Yes
Maximum Resistance Measurement
2,000 kiloohm
Basic DC Current Accuracy
+/-2.5%
Battery Voltage
9 V
Minimum DC Voltage Measurement
0 mV
Minimum Storage Temperature
-4 Degrees F
DC Voltage Measurement Resolution
0.1 V
AC Voltage Measurement Resolution
0.1 V
Maximum DC Voltage Measurement
600 V
Maximum DC Current Measurement
10 A
Basic DC Voltage Accuracy
+/-0.50%
DC Current Measurement Resolution
0.1 mA
Battery Chemistry
Alkaline
Computer Interface Connection Type
None
Bluetooth Compatible
No
Minimum Operating Temperature
32 Degrees F
Removable Screen
No
Basic AC Voltage Accuracy
+/-0.5%
Dustproof
No
Waterproof
No
Minimum AC Voltage Measurement
0 V
Maximum AC Current Measurement
10 A
Thermal Imaging
No
Frequency Measurement Accuracy
+/-0.50%
Minimum Resistance Measurement
0.1 ohm
NIST Certification By Manufacturer
Not Certified
Software Included
No
Resistance Measurement Resolution
0.1 ohm
Capacitance Measurement Accuracy
+/-0.50%
Minimum AC Current Measurement
0 mA
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
AC Response Calculation
Average
Current Leakage Testing
No
Batteries Included
Yes
Maximum AC Voltage Measurement
600 V
AC Current Measurement Resolution
0.1 mA
Basic AC Current Accuracy
+/-0.5%
Maximum Storage Temperature
140 Degrees F
Temperature Measurement Accuracy
+/-3.00%
Maximum Operating Temperature
122 Degrees F
Fuse Access
Yes
Resistance Measurement Accuracy
+/-1.2%
Includes Auto Sensing
No Auto Sensing Included
CAT Safety Rating
CAT II 1000V, CAT III 600V
IP Rating
Not Rated
Voltage Units
mV, V
Special Features
10A Max Current, AC/DC Voltage & Current, Resistance, Diode/Continuity, Battery Test Function for 1.5V and 9V Batteries, Built-In Non-Contact AC Voltage Detector (Ncv) with Red LED Indicator and Audible Beeper, Complete with Test Leads, Tilt Stand, Protective Holster and 9V Battery, Large-Digit 2,000 Count LCD Display, Low Battery Indicator, Manual Ranging DMM with 9 Functions and 0.5% Basic Accuracy
Current Units
A, mA

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-0.5 Percent, Basic DC Voltage Accuracy +/-0.50 Percent, Data Hold Yes, Basic DC Current Accuracy +/-2.5 Percent, Instrument Safety Rating CAT II 1000V, CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 2,000
