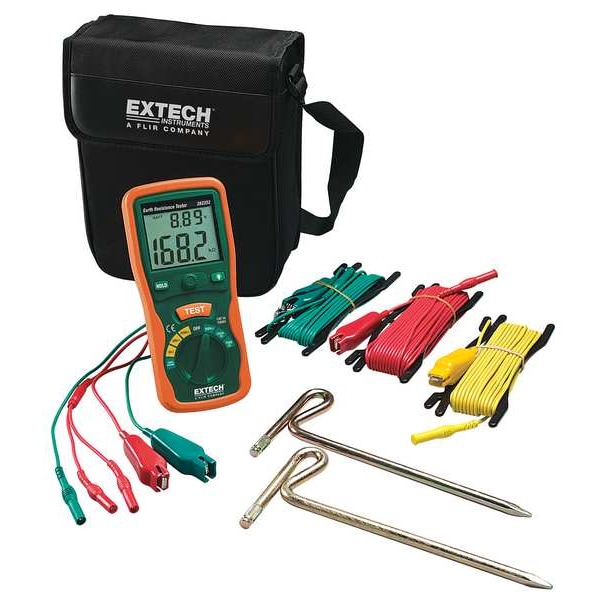

Extech Earth Ground Tester Kit, 820 Hz 382252 - main

Earth Ground Tester Kit, 820 Hz

  • Mfr # 382252

  • Zoro # G0495056

product price:  $359.00
/ea
Free Shipping & Returns

Key Features

Resolution
0.01 Ohms
Operating Frequency
820 Hz
Earth Volts
0 to 200V AC
Measuring Voltage
0 to 1000V DC
Accuracy
+/-0.8% of Reading +/-3 Digits
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
382252
Zoro #
G0495056
UPC #
793950822524
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA
Tool Width
2 in
Manufacturer Warranty Length
1 yr
Tool Height
7.9 in
Tool Length
3.6 in

Details

Item
Earth Ground Tester Kit
Resolution
0.01 Ohms
Operating Frequency
820 Hz
Earth Volts
0 to 200V AC
Measuring Voltage
0 to 1000V DC
Accuracy
+/-0.8% of Reading +/-3 Digits
Safety Rating
CAT III 1000V
Includes
(2) Auxiliary Earth Bars, All Hardware Necessary to Measure Earth Ground, Carrying Case, Protective Rubber Holster, Test Leads
Power Source
Battery
Earth Ground Resistance Range
0.02/0.2/2 kilohm
Standards
CE
Display
Digital LCD
Resistance Accuracy
+/-2.00%
Current Accuracy
+/-3.00% +3 digits
Bluetooth Compatible
No
Measurement Connectors
Clamp and Stakes
Other Testing Functions
Earth Voltage
Data Logger
No
Calibration Certificate
None
IP Rating
Not Rated
Features
Automatic Zero Adjustment, Test Hold Function
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Waterproof
No
Tester Type
Ground Resistance Tester
Dustproof
No
Display Screen Type
LCD
CAT Safety Rating
CAT III 1000V
Minimum Ground Resistance Measurement
20 ohm
Test Current
2.5 mA
Number of Batteries Required
6
Display Type
Digital
Battery Chemistry
Alkaline
Maximum Earth Voltage
200 V
Maximum Ground Resistance Measurement
2,000 ohm
Maximum Operating Temperature
104 Degrees F
Includes Batteries
Batteries Included
Data Output Type
No Output
Calibration Certificate Included
No Certification Included
Resistance Testing Functions
AC Voltage, DC Voltage, Earth Voltage, Ground Loop Resistance, Resistance
Ground Testing Functions
3-Pole

Description

Earth Ground Tester Kit, Bluetooth Compatible No, CAT Safety Rating CAT III 1000V, Calibration Certificate None, Current Accuracy +/-3.00 Percent +3 digits, Data Logger No, Display Type Digital, Dustproof No, IP Rating Not Applicable, Jaw Capacity Not Applicable, Leakage Current Range Not Applicable, Maximum Earth Voltage Not Applicable, Maximum Ground Resistance Measurement 2,000 ohm, Measurement Connectors Clamp and Stakes, Minimum Ground Resistance Measurement 20 ohm
