  5. Digital Multimeter, 1,000 V Max DC, 0 V Max AC, Average, 6,000 Instrument Counts, Backlit LCD

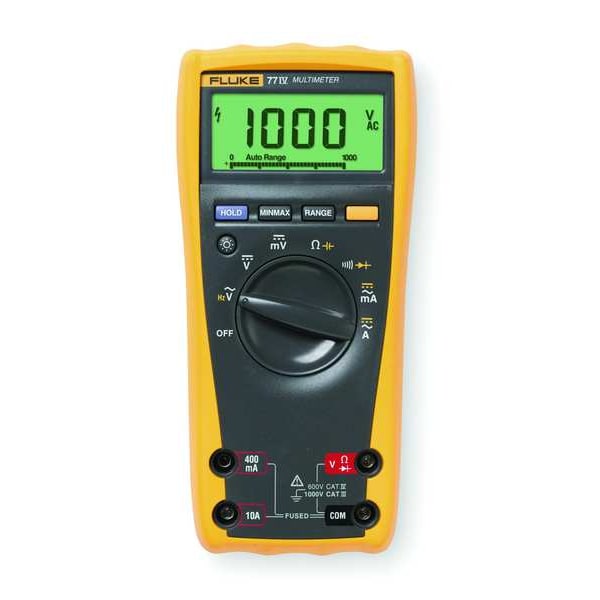

Fluke Digital Multimeter, 1,000 V Max DC, 0 V Max AC, Average, 6,000 Instrument Counts, Backlit LCD Fluke-77 IV - main

Digital Multimeter, 1,000 V Max DC, 0 V Max AC, Average, 6,000 Instrument Counts, Backlit LCD

  • Mfr # Fluke-77 IV

  • Zoro # G3047956

product price:  $495.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide
Standards
ANSI/ISA S82.02.01, CSA C22.2-1010.1, UL, VDE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Fluke-77 IV
Zoro #
G3047956
UPC #
095969560856
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
Lifetime
Battery Size
9V
Depth
7.3 in
Overall Width
3.5 in
Pulse Width
No
Overall Height
1.7 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide
Standards
ANSI/ISA S82.02.01, CSA C22.2-1010.1, UL, VDE
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Multimeter Style
Full Size - General Features
Instrument Safety Rating
CAT IV 600V
Instrument Frequency Counter Range
0.01 Hz to 100 kHz
Basic DC Accuracy
+/-0.30% of Reading + 1 Digit
Max. AC Amps
10
Series
FLUKE (R) Fluke-77-IV
Display
Backlit LCD
Max. Ohms
50 megohm
Auto Ranging
Yes
Calibration Certificate Included
No
AC Response
Average
Capacitance Range
1 nF to 9999 uF
Max. DC Amps
10
Duty Cycle
No
Intrinsically Safe
No
Maximum DC Voltage Measurement
1,000 V
Current Leakage Testing
No
Maximum Storage Temperature
140 Degrees F
Bluetooth Compatible
No
Basic DC Current Accuracy
1.5% + 2
Minimum DC Voltage Measurement
0 V
Dustproof
No
Battery Access
Yes
Minimum Capacitance Measurement
1 nF
Bar Graph Included
Yes
Battery Voltage
9V
Battery Chemistry
Alkaline
Minimum Frequency Measurement
0.01 Hz
Maximum AC Voltage Measurement
1,000 V
Maximum Frequency Measurement
100 kHz
AC Voltage Measurement Resolution
1 V
Resistance Measurement Resolution
0.1 ohm
Maximum AC Current Measurement
10 A
Minimum AC Voltage Measurement
0 V
Removable Screen
No
Batteries Included
Yes
Computer Interface Connection Type
None
Maximum Operating Temperature
122 Degrees F
Basic DC Voltage Accuracy
+/-0.30% + 1 Digit
Frequency Measurement Accuracy
+/-(0.1% + 1)
Software Included
No
Thermal Imaging
No
Weight
420 g
DC Current Measurement Resolution
0.01 uA
Maximum DC Current Measurement
10 A
Minimum Operating Temperature
14 Degrees F
Basic AC Current Accuracy
2.5% + 2
Min-Max-Avg Button Included
Yes
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Maximum Resistance Measurement
50 megaohm
Maximum Capacitance Measurement
9,999 uF
Minimum/Maximum Memory
Yes
Minimum Storage Temperature
-40 Degrees F
AC Response Calculation
Average
DC Voltage Measurement Resolution
1 V
Basic AC Voltage Accuracy
+/-(2.0% + 2)
Capacitance Measurement Accuracy
+/-(1.2% + 2)
AC Current Measurement Resolution
0.01 mA
Minimum DC Current Measurement
0 mA
Waterproof
No
Resistance Measurement Accuracy
+/-0.5%
Capacitance Measurement Resolution
1 nF
Fuse Access
Yes
Minimum AC Current Measurement
0 mA
Frequency Measurement Resolution
0.01 Hz

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy +/-(2.0 Percent + 2), Basic DC Voltage Accuracy +/-0.30 Percent + 1 Digit, Data Hold Yes, Basic DC Current Accuracy 1.5 Percent + 2, Instrument Safety Rating CAT IV 600V, Maximum AC Voltage Measurement 1,000 V, Maximum DC Voltage Measurement 1,000 V, Instrument Counts 6,000, Special Features Battery Door, Ergonomic Overmolded Housing with Integrated Probe Holders, Maximum AC Current Measurement 10 A
