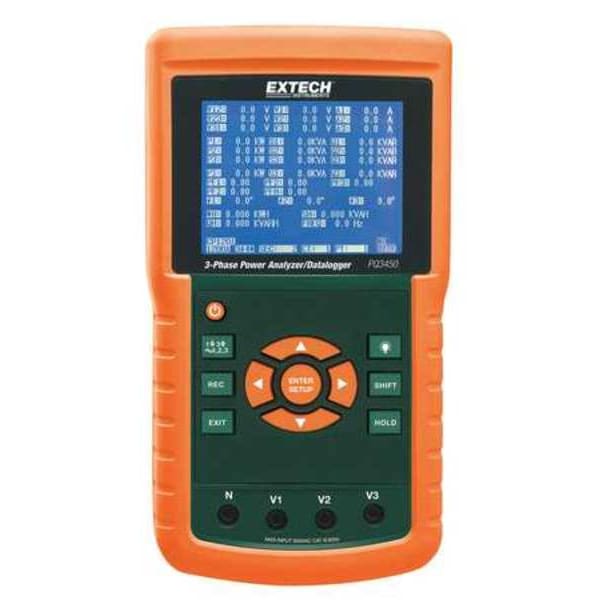

Extech Power Analyzer/Datalogger, Up To 30000A PQ3450 - main

Power Analyzer/Datalogger, Up To 30000A

  • Mfr # PQ3450

  • Zoro # G5043087

product price:  $2,366.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
2 sec to 2 hr
Phase
-180 to +180
Includes
(8) AA Batteries, 4V Leads with Alligator Clips, Carrying Case, SD Memory Card, Universal AC Adapter (100 to 240V)
Max. Watts
9.99 MW
Display
Back Lighted LCD
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PQ3450
Zoro #
G5043087
UPC #
793950334508
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Battery Size
AA

Details

Item
Power Analyzer/Datalogger
Sampling Rate
2 sec to 2 hr
Phase
-180 to +180
Includes
(8) AA Batteries, 4V Leads with Alligator Clips, Carrying Case, SD Memory Card, Universal AC Adapter (100 to 240V)
Max. Watts
9.99 MW
Display
Back Lighted LCD
Power Factor
0 to 1
Current Channels
3
Safety Rating
Cat III 600V
Current Accuracy
+/-0.5% +5 Digits
Voltage Channels
3
Max. DC Amps
3,000 A
AC Response
TRMS
Calibration Frequency
60 Hz
Max. AC Voltage
600
Voltage Accuracy
+/-0.5%
Crest Factor
1 to 9.99
Max. VA
9.99 MVA
Storage
30,000 Readings
Max. AC Amps
3,000 A
Communication Protocol
RS-232
Maximum AC Current Measured
1,200 A
For Phase
Three
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
IP Rating
Not Rated
Maximum Wattage
9.999 mW
Data Output Type
RS-232, SD Card
Calibration Certificate Included
No Certification Included
CAT Safety Rating
CAT III 600V
Input Impedance
10 megaohm
Display Type
Digital
Maximum AC Voltage Measured
600 V
Testing Functions
A (Phase-to-Ground), KW/KVA/KVAR/PF (Phase), KW/KVA/KVAR/PF (System), KWH/KVAH/KVARH/PFH (System), Phase Angle, V (Phase-to-Phase) V (Phase-to-Ground)
AC Magnitude Calculation
True RMS
Power Source
AC Adapter, Battery
Minimum AC Voltage Measured
10 V

Description

Power Analyzer/Datalogger, Current Channels 3, For Phase Three, Includes (8) AA Batteries, 4V Leads with Alligator Clips, Carrying Case, SD Memory Card, Universal AC Adapter (100 to 240V), Maximum AC Current Measured 1,200 A, Power Factor 0 to 1, Voltage Channels 3, Calibration Frequency 60 Hz, Communication Protocol RS-232, Crest Factor 1 to 9.99, Current Accuracy +/-0.5 Percent +5 Digits
