Shop EXTECH

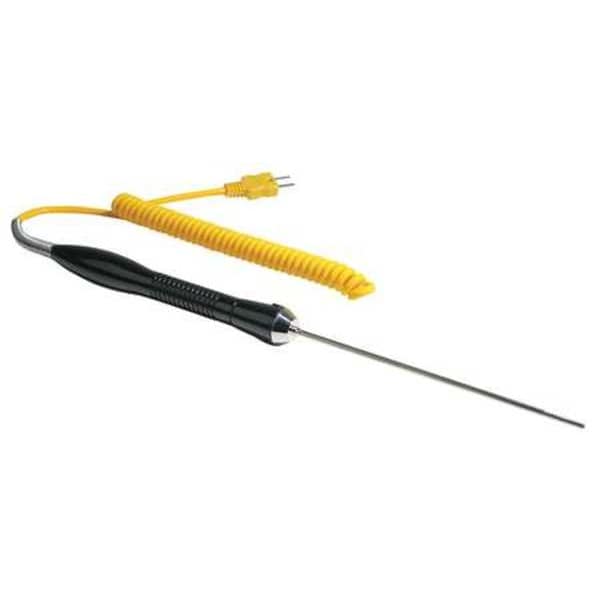

Temperature Probe, Mini Plug, Type K

  • Mfr # TP882

  • Zoro # G5043053

product price:  $55.99
/ea

Key Features

Sensor Type
Thermocouple
Temp. Range (F)
-50 Degrees to 1000 Degrees
Temp. Range (C)
-46 Degrees to 538 Degrees
Probe Length
5.9 in
Primary Measuring Element
Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TP882
Zoro #
G5043053
UPC #
793950388822
Country of Origin
Taiwan, Province of China

Dimensions

Probe Length
5.9 in
Probe Wire Length
6 ft
Wire Length
6 ft.
Probe Dia.
1/8 in
Manufacturers Warranty Length
6 mo
Probe Tip Diameter
0.125 in
Probe Diameter
0.13 in
Manufacturer Warranty Length
6 mo
Probe Size
1/8 in x 5.9 in
Cable Length
6 ft
Process Mounting Thread Size
1/4" NPT

Details

Item
Penetration Temperature Probe
Sensor Type
Thermocouple
Temp. Range (F)
-50 Degrees to 1000 Degrees
Temp. Range (C)
-46 Degrees to 538 Degrees
Primary Measuring Element
Thermocouple
Probe Temp. Measuring Element
K Thermocouple
Probe Connector
Mini
Probe Connection Type
Type K Mini
Probe Contact Material
Stainless Steel
Accuracy
+/-0.2 Degrees C, +/-0.4 Degrees F
Use
Air or Liquids
Response Time
Less Than 2 sec
Process Connection
1/4 in NPT, Compression Fitting
Temperature Measuring Element
K Thermocouple
Probe Material
Stainless Steel
Includes
Probe with Cable and Thermocouple Connector
Head Material
Stainless Steel
Minimum Temperature F
-50 Degrees F
Fitting Type
Compression
Probe Bend
Straight
Temperature Range
-50 Degrees to 1,000 Degrees F/-50 Degrees to 538 Degrees C
For Air
Yes
Thermocouple Type
Type K
Head Connection
1/4 in NPT
For Liquids and Gels
Yes
For Application
Air, Liquid, Solid
For Solids
Yes
Tip Style
Pointed
Connector Type
Mini Plug
For Surfaces
No
Includes Thermowell
No
Maximum Temperature F
1,000 Degrees F
Process Mounting
1/4 in NPT Compression
Minimum Temperature C
-50 Degrees C
For Gases
No
Maximum Temperature C
538 Degrees C
Minimum Temperature °F
-50 Degrees F
Maximum Temperature °F
1,000 Degrees F
Maximum Temperature °C
538 Degrees C
Minimum Temperature °C
-50 Degrees C
Minimum Temperature °C
-50 Degrees C
Minimum Temperature °F
-50 Degrees F
Maximum Temperature °F
1,000 Degrees F
Maximum Temperature °C
538 Degrees C
Probe Sheath Material
304 Stainless Steel
Cable Material
Polyurethane
Handle Type
Straight Handle
Junction Type
Exposed
For Media Type
Liquids and Gels, Solids
Maximum Temperature (°C)
538 Degrees C
Maximum Temperature (°F)
1,000 Degrees F
Process Mounting Connection
Thread

Description

Penetration Temperature Probe, Type K, For Application Air, Liquid, Solid, 1/4 in NPT Compression, Mini Plug, Probe Size 1/8 in x 5.9 in, Cable Length 6 ft, -50 Degrees to 1,000 Degrees F/-50 Degrees to 538 Degrees C, Thermocouple
