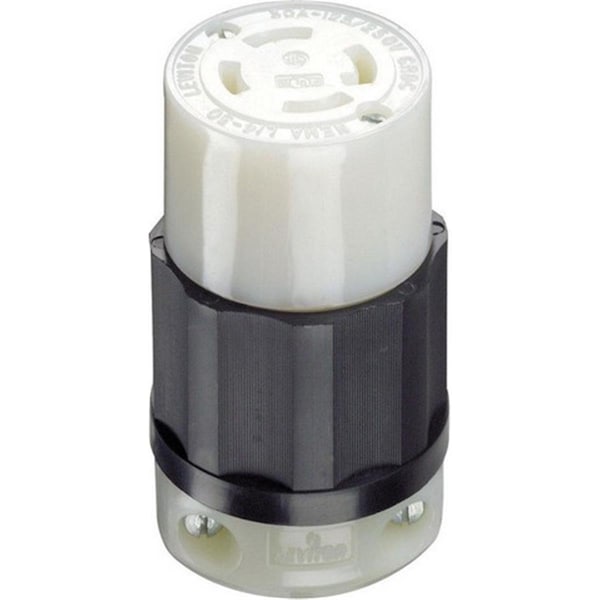

Locking Connector, L14-3R, 30 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White
Mfr # EZ613105
Zoro # G515799779
product price: $42.69
/eaKey Features
NEMA Receptacle Configuration
L14-3R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ613105
Zoro #
G515799779
UPC #
654204842500
Country of Origin
China
Dimensions
For Maximum Cable Diameter
1.05 in
For Minimum Cable Diameter
0.5625 in
Details
Item
Locking Connector
NEMA Receptacle Configuration
L14-3R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Description
Features -Grade: Industrial -Material: Nylon -Plug Type: Curved Blade -Product Type: Locking Connector -Nema Type: L14-3R -Wires Poles: 4 wire 3 pole -Color Family: Black/White -CSA Listed: Yes -Voltage: 125/25 volts -UL Listed: Yes -Maximum Amperage: 3 amps -Grounding -Nylon body and cable clamp with removable insert
