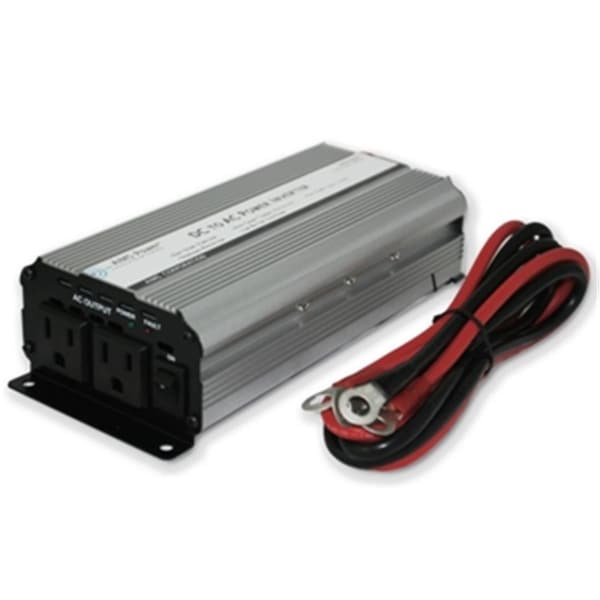

Power Inverter, Modified Sine Wave, 1,600 W Peak, 800 W Continuous, 2 Outlets

The AIMS 800 Watt modified sine wave power inverter provides ample midsize power which is great for applications that are too big for a 400 watt inverter and too small for a 1250 watt inverter. The peak on this 800 watt power inverter is an impressive 2000 Watts

• 800 watt continuous power.
• Modified sine wave.
• LED: Green power on and red heavy load/fault condition.
• Dual ac receptacle with rubber protective covers.
• On/off switch.
• Over Temperature protection.
• Over Load protection.
• Convenient cooling fan operation.
• Cables included for direct connect to battery 42".
• Internally fuse protected.
• AC output short circuit protection.
• Aluminum case for optimal cooling.
• Pre-slotted mounting plate.
• Isolated ground neutral.

• Surge power capability: 1600 Watts not meant for startup applications.
• Short circuit protection.
• DC input / operating voltage: 10 to 15 Volts · Output voltage: 120 Volts ac.
• Output wave form: modified sine wave.
• Output frequency: 60 Hz.
• Battery low voltage alarm: 10.5 +/- 0.5 Volts.
• Battery low voltage shutdown: 10.0 +/- 0.5 Volts.
• No load current @ 12V: < 0.7 dc Amps.
• Full load efficiency: 90%.
• 1/3 load efficiency: 95%.
• No load minimum operating temperature: -15 degrees Celsius.
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown).
• AC output Socket Type: dual Type 2 -3 prong.
• High input voltage protection: 15.5V.
• Low input voltage shutdown: 10.5V.
• Internal fuse protection.
• Dimension - 9.25 x 2.25 x 3.5 in.
• Item Weight - 2 lbs.
