Ezo

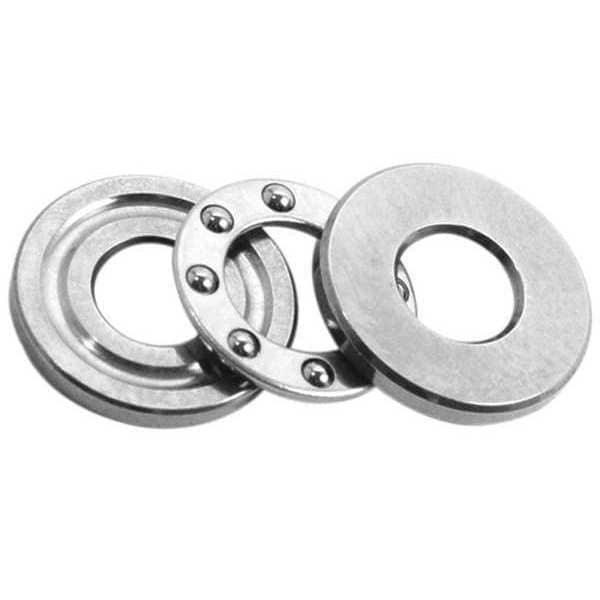

Thrust Bearing, 3mmBore Dia, Grooved, 193lb

product price: $6.89
/ea
Sold in multiples of 2 for $13.78
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Temp. Range (F) -58 Degrees to +401 Degrees F
  • Outside Dia. (mm) 7.8 mm
  • Dimension d2 (mm) 3.2 mm
  • Lubrication Oil
  • Material 52100 Chrome Steel
See all product information

Product Information

Dimensions

Outside Dia. (mm) 7.8 mm
Dimension d2 (mm) 3.2 mm
Outside Dia. (In.) 0.307 in
Height (In.) 0.138 in
Height (mm) 3.5 mm
Bore Dia. (In.) 0.118 in
Bore Dia. (mm) 3 mm
Fillet Radius 0.15 mm
Overall Width 3.5 mm
Bore Diameter 3 mm
Outside Diameter 8 mm

Details

Temp. Range (F) -58 Degrees to +401 Degrees F
Lubrication Oil
Material 52100 Chrome Steel
Type Grooved
Item Ball Thrust Bearing
Dynamic Load Capacity (Lb.) 193 lb
Max. RPM 6,500 RPM
Static Load Capacity (Lb.) 174 lb
Lubricant Material Grease, Oil
Dynamic Axial Load Capacity 994 N
Cage Material Steel
Washer Material Steel
Static Axial Load Capacity 932 N
System of Measurement Metric
Bearing Industry Number F3-8M
Thrust Bearing Type Separable Ball Thrust Bearing
Minimum Temperature -50 Degrees C
Ball Material Steel
Maximum Speed 19,000 RPM Grease, 24,000 RPM Oil
Ball Material Grade SUJ2
Maximum Temperature 205 Degrees C
Closure Open
Race Form Grooved
Washer Material Grade SUJ2
Cage Material Grade SUJ2
Housing Washer Bore 3.2 mm

Description

Ball Thrust Bearing, Ball Material Steel, Bearing Industry Number F3-8M, Bore Diameter 3 mm, Cage Material Steel, Closure Open, Housing Washer Bore 3.2 mm, Lubricant Material Grease, Oil, Maximum Speed 19,000 RPM Grease, 24,000 RPM Oil, Outside Diameter 8 mm, Overall Width 3.5 mm, Seal Material Not Applicable, Seal Type Not Applicable, System of Measurement Metric, Thrust Bearing Type Separable Ball Thrust Bearing, Washer Material Steel, Ball Material Grade SUJ2, Cage Material Grade SUJ2
