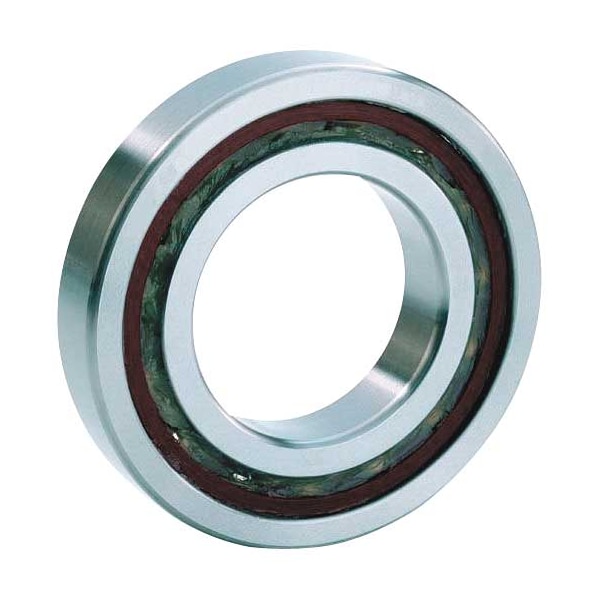

Angular Contact Ball BRG, Bore 80 mm
Mfr # 7316-B-MP-UA
Zoro # G0983236
product price:Â
$
415.99
/ea
Free Shipping & Returns
Key Features
Contact Angle (Degree)
40
Bore Dia.
80 mm
Outside Dia.
170 mm
Width
39 mm
Cage Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7316-B-MP-UA
- Zoro #
- G0983236
- UPC #
- 04012801207775
- Country of Origin
- United States
- Item
- Angular Contact Ball Bearing
- Contact Angle (Degree)
- 40
- Cage Material
- Brass
- Lubrication
- Oil
- Dynamic Load Capacity (N)
- 140,000
- Static Load Capacity (N)
- 114,000
- ABEC Tolerance
- 5
- Temp. Range (F)
- -22 a 302
- Max. RPM
- 4,800 RPM
- Contact Angle
- 40 Degrees
- Minimum Temperature
- -22 Degrees F
- Closure
- Open
- Bearing Industry Number
- 7316
- Maximum Speed
- 4,800 RPM
- Load Direction
- Radial, Thrust
- Number of Rows
- One
- Static Radial Load Capacity
- 124,000 N
- Dynamic Radial Load Capacity
- 155,000 N
- ABEC Rating
- 5
- Maximum Temperature
- 302 Degrees F
- Matched Bearing Type
- Not Available
- Contact Bearing Type
- Angular Contact
- System of Measurement
- Metric
- Industry Number
- 7316
Description
Angular Contact Ball Bearing, Bearing Industry Number 7316, Bore Diameter 80 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Available, Maximum Speed 4,800 RPM, Maximum Temperature 302 Degrees F, Minimum Temperature -22 Degrees F, Number of Rows One, Outside Diameter 170 mm, Overall Width 39 mm, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 155,000 N, Housing Fillet Radius 1 mm
