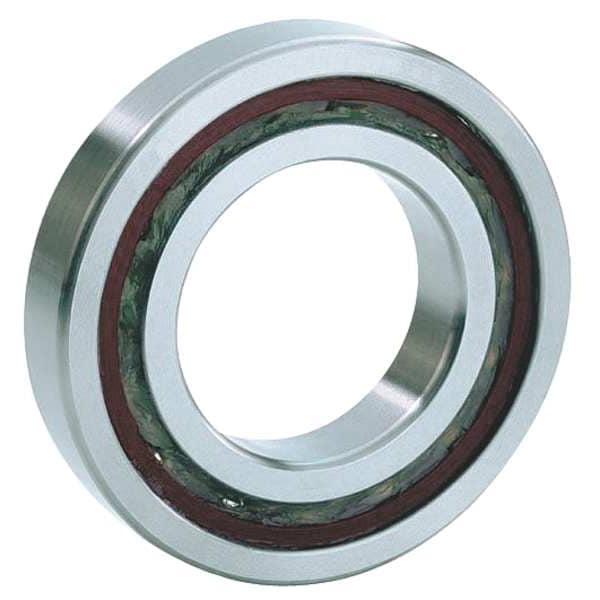

Angular Contact BRG, 85 mm Bore
Mfr # 7217-B-TVP-UA
Zoro # G6844871
product price: $229.99
/ea
Free Shipping & Returns
Key Features
Contact Angle (Degree)
40
Bore Dia.
85 mm
Outside Dia.
150 mm
Width
28 mm
Cage Material
PA66
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7217-B-TVP-UA
Zoro #
G6844871
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
85 mm
Outside Dia.
150 mm
Width
28 mm
Overall Width
28 mm
Shaft Fillet Radius
2 mm
Housing Fillet Radius
1 mm
Outside Diameter
150 mm
Bore Diameter
85 mm
Description
Angular Contact Ball Bearing, Bearing Industry Number 7217, Bore Diameter 85 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Available, Maximum Speed 4,500 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 150 mm, Overall Width 28 mm, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 97,000 N, Housing Fillet Radius 1 mm
