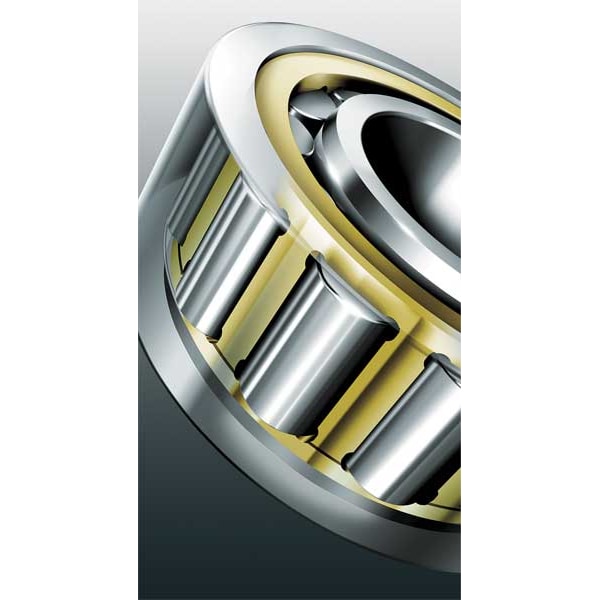

Cylindrical Roller Bearing, Bore 40 mm
Mfr # NU308-E-XL-M1-C3
Zoro # G2369403
product price:Â $363.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
40 mm
Outside Dia.
90 mm
Width
23 mm
Roller Material
Alloy Steel
Cage Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NU308-E-XL-M1-C3
- Zoro #
- G2369403
- UPC #
- -
- Country of Origin
- India
Dimensions
- Bore Dia.
- 40 mm
- Outside Dia.
- 90 mm
- Width
- 23 mm
- Shaft Fillet Radius
- 1.5 mm
- Housing Fillet Radius
- 1.5 mm
- Bore Diameter
- 40 mm
- Overall Width
- 23 mm
- Outer Ring Inside Diameter
- 75.9 mm
- Bore Diameter Tolerance
- +0/-0.010 mm
- Outside Diameter Tolerance
- +0/-0.013 mm
- Outside Diameter
- 90 mm
Description
Cylindrical Roller Bearing, Bearing Industry Number 308, Bore Diameter 40 mm, Bore Type Cylindrical, Cage Material Brass, Closure Open, Lubricant Material Grease, Oil, Maximum Speed 14,200 RPM, Maximum Temperature 150 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outer Ring Inside Diameter 75.9 mm, Outside Diameter 90 mm, Overall Width 23 mm, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable, Split Bearing Yes, System of Measurement Metric
