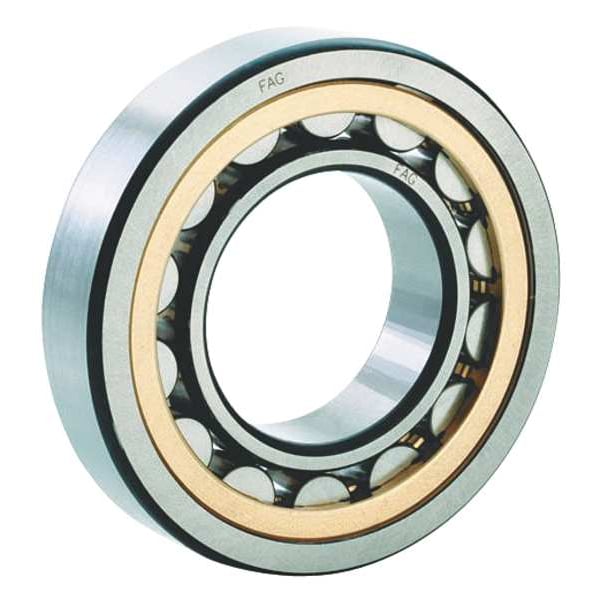

Cylindrical Roller BRG, Bore 20 mm
Mfr # NU2204-E-XL-TVP2
Zoro # G7513414
product price: $127.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
20 mm
Outside Dia.
47 mm
Width
18 mm
Roller Material
Alloy Steel
Cage Material
Thermoplastic
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NU2204-E-XL-TVP2
Zoro #
G7513414
UPC #
-
Country of Origin
India
Dimensions
Bore Dia.
20 mm
Outside Dia.
47 mm
Width
18 mm
Overall Width
18 mm
Shaft Fillet Radius
0.6 mm
Bore Diameter
20 mm
Bore Diameter Tolerance
+0/-0.008 mm
Outer Ring Inside Diameter
38.8 mm
Outside Diameter
47 mm
Outside Diameter Tolerance
+0/-0.009 mm
Housing Fillet Radius
1 mm
Description
Cylindrical Roller Bearing, Bearing Industry Number 2204, Bore Diameter 20 mm, Bore Type Cylindrical, Cage Material Thermoplastic, Closure Open, Lubricant Material Grease, Oil, Maximum Speed 22,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outer Ring Inside Diameter 38.8 mm, Outside Diameter 47 mm, Overall Width 18 mm, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable, Split Bearing Yes
