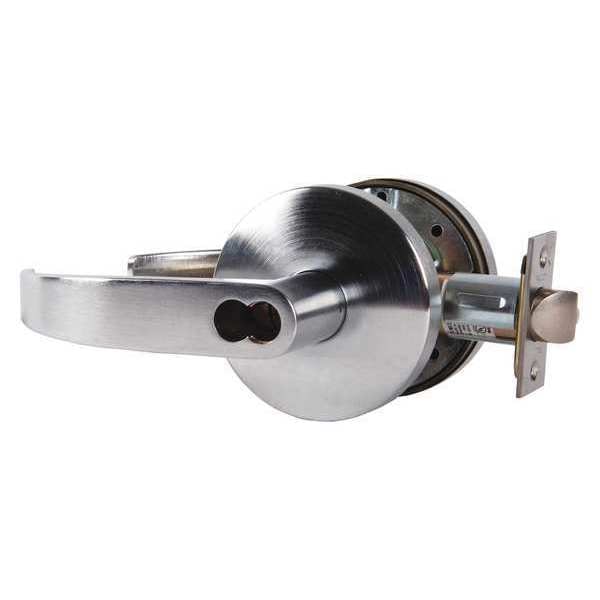

Falcon Lever Lockset, Mechanical, Classroom, Grd.2 W561BD Q 626 - main

Lever Lockset, Mechanical, Classroom, Grd.2

  • Mfr # W561BD Q 626

  • Zoro # G5051487

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W561BD Q 626
Zoro #
G5051487
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/4 in, 1-3/8 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
2
Style
W Quantum
Lockset Finish
Satin Chrome
Keyway Type
Keyway G
Key Type
Not Keyed
Lockset Performance Strength
Medium Duty
Number of Keys
0
Includes
Hardware
Backset
2 3/4 in
Lockset Fire Rating
3 hr
Series
W
Handle Material
Brass, Steel, Zinc
Mortise/Cylindrical
Cylindrical
Standards
ANSI/BHMA A156.2
Strike Type
Curved Lip
Cylinder Core Type
Conventional Core Cylinder
Number of Pins
6
ADA Compliant
Yes
Item
Door Lockset
Ligature Resistant
No
Location Type
Commercial
Keying
Unkeyed
Finish
Satin Chrome
Features
10 yr Limited Warranty, Does Not Require Field Disassembly
Fire Rated
3 hr.
Grade
2
Type
Medium Duty
Material
Brass/Steel/Zinc
Visual Indicator Message
No Message
Pins
6
Function
Classroom
Cylinder
Less SFIC Cylinder
Strike
Square Corner
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Dead Latch
Locking/Unlocking Access - Outside
Keyway
Includes Hardware
Hardware Included
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Steel
Performance Grade
2
ANSI Grade
2
Lockset Function ANSI Code
F84
Lockset Type
Mechanical
Lockset Style
Quantum
Application
Commercial
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed

Description

Lever Lockset, Medium Duty, Commercial, Series W, Style Quantum, Finish Satin Chrome, Function Classroom, Keyway Type No Core, Grade 2, Material Brass/Steel/Zinc, For Door Thickness 1-3/8, 1-3/4 In, Backset 2-3/4 In, Crossbore Size 2-1/8 In, Number of Keys 2, Pins 6, Strike Square Corner, Required Door Thickness 1-3/8, 1-3/4 In, Keying SFIC Not Included, Standards ANSI A156.2, Fire Rated 3 hr., Includes Hardware
