  13. Lever Lockset, Mechanical, Passage, Grd. 1

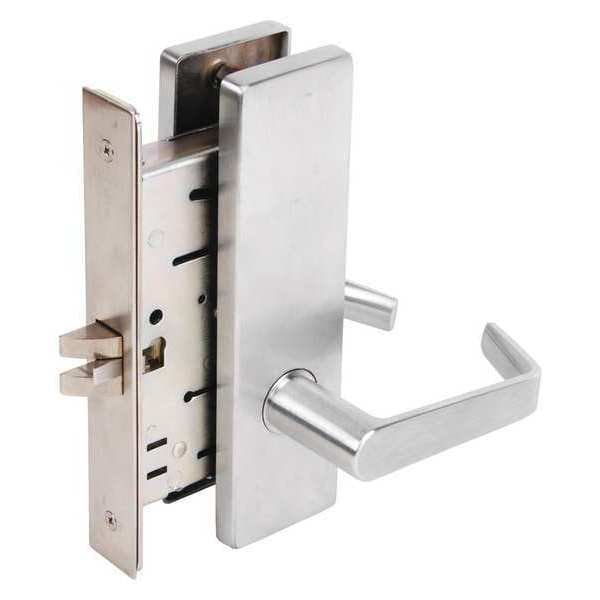

Falcon Lever Lockset, Mechanical, Passage, Grd. 1 MA101 DN 626 - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # MA101 DN 626

  • Zoro # G4067869

product price: $301.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Inside Trim, Mounting Screws, Outside Trim, Spindle
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MA101 DN 626
Zoro #
G4067869
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/4 in to 1-7/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
1 7/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
various Door Types
Includes
Inside Trim, Mounting Screws, Outside Trim, Spindle
Key Type
Not Keyed
Keyway Type
Keyway G
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Number of Pins
6
Series
MA
Style
MA Dane Napa
Finish
Satin Chrome
Item
Door Lockset
Lockset Finish
Satin Chrome
Ligature Resistant
No
Strike Type
ANSI
Standards
ANSI/BHMA A156.13
Number of Keys
0
Lockset Fire Rating
Not Rated
Strike Dim.
1-1/4 in x 4-7/8 in
ADA Compliant
Yes
Mortise / Cylindrical
Mortise
Grade
1
Fire Rated
Not Rated
Keying
UnKeyed
Pins
0
Cylinder Core Type
Conventional Core Cylinder
Function
Passage
Application
Commercial
Handle Type
Lever
Visual Indicator Message
No Message
Hand Orientation
Right-Handed
Lockset Type
Mechanical
Performance Grade
1
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Not Lockable
ANSI Grade
1
Locking/Unlocking Access - Outside
Not Lockable
Lockset Style
Dane
Latch Bolt/Dead Bolt
Dead Bolt, Latch Bolt
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr
Includes Hardware
Hardware Included
Lockset Function ANSI Code
F01

Description

Lever Lockset,Mechanical,Passage,Grd. 1
