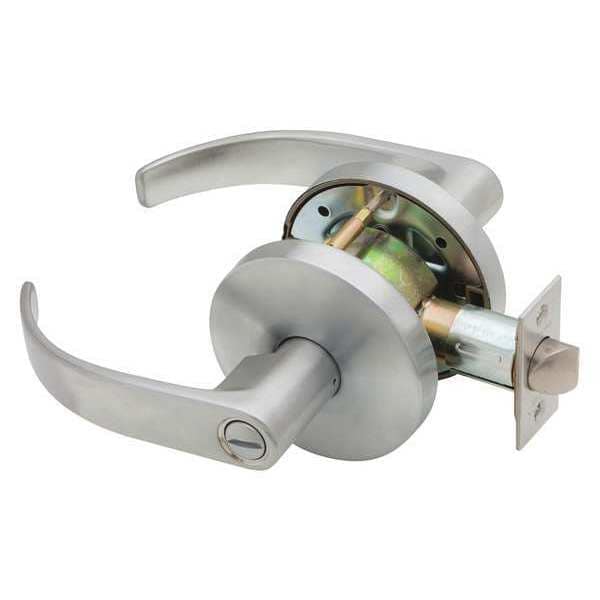

Falcon Lever Lockset, Mechanical, Privacy, Grd. 2 W301S Q 626 - main

Lever Lockset, Mechanical, Privacy, Grd. 2

  • Mfr # W301S Q 626

  • Zoro # G5051401

product price: $84.86
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W301S Q 626
Zoro #
G5051401
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/4 in, 1-3/8 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
2
Finish
Satin Chrome
Series
W
Backset
2 3/4 in
Includes
Hardware
ADA Compliant
Yes
Lockset Fire Rating
3 hr
Strike Type
Curved Lip
Ligature Resistant
No
Lockset Grade
2
Lockset Performance Strength
Medium Duty
Lockset Handle Type
Lever
Style
W Quantum
Handle Material
Zinc
Mortise / Cylindrical
Cylindrical
Keyway Type
Keyway G
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Mortise/Cylindrical
Cylindrical
Standards
ANSI/BHMA A156.2
Number of Pins
6
Features
10 yr Limited Warranty, Does Not Require Field Disassembly
Number of Keys
0
Keying
Unkeyed
Fire Rated
3 hr.
Strike
Square Corner
Material
Brass/Steel/Zinc
Function
Privacy
Cylinder Core Type
Conventional Core Cylinder
Visual Indicator Message
No Message
Pins
6
Type
Medium Duty
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Performance Grade
2
Locking/Unlocking Access - Inside
Push Button
Includes Hardware
Hardware Included
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Spring Latch
Lockset Style
Quantum
Hand Orientation
Non-Handed
ANSI Grade
2
Lockset Function ANSI Code
F76
Knob/Handle Material
Steel
Application
Commercial
ANSI/BHMA Finish
Satin Chromium-Plated

Description

Lever Lockset, Medium Duty, Commercial, Series W, Style Quantum, Finish Satin Chrome, Function Privacy, Keyway Type G, Grade 2, Material Brass/Steel/Zinc, For Door Thickness 1-3/8, 1-3/4 In, Backset 2-3/4 In, Crossbore Size 2-1/8 In, Key Type Nickel Silver, Number of Keys 2, Pins 6, Strike Square Corner, Required Door Thickness 1-3/8, 1-3/4 In, Keying Keyed Different (KD), Standards ANSI A156.2, Fire Rated 3 hr., Includes Hardware
