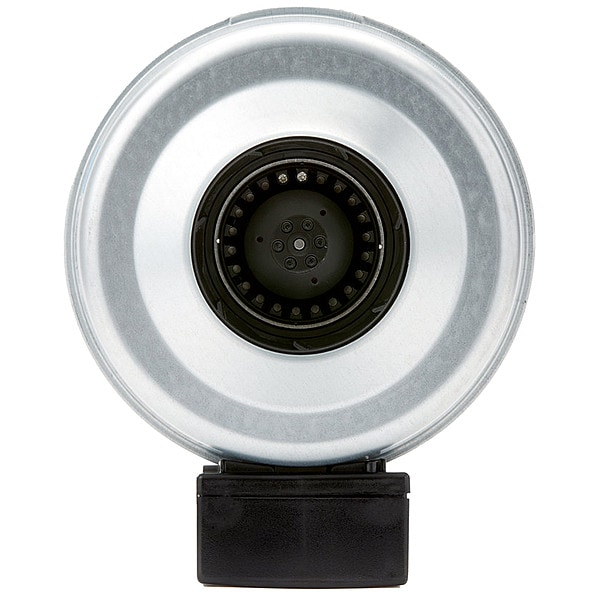

Fantech Inline Centrifugal Duct Fan, 4 In. Dia. 45016 - main

Inline Centrifugal Duct Fan, 4 In. Dia.

  • Mfr # 45016

  • Zoro # G3099914

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
0.19 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
20
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45016
Zoro #
G3099914
UPC #
650737480400
Country of Origin
Multiple

Dimensions

Fits Duct Dia.
4 in
Length
8 1/2 in
Inlet and Outlet Dia.
3 7/8 in
Housing Dia.
8 3/4 in
Overall Diameter
8 1/2 in
Duct Diameter
4 in
Overall Width
7 1/2 in
Overall Height
10 1/2 in

Details

Item
In-Line Duct Fan
Max. Amps
0.19 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
20
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
CFM @ 0.600-In. SP
55 cfm
CFM @ Duct
135 cfm
Number of Speeds
1
Phase
1
Standards
AMCA, cULus
Max. Inlet Temp.
140 Degrees F
Mounting Position
Horizontal or Vertical
Motor HP
1/50 hp
Speed Control
Mfr. No. 48C172
CFM @ 0.750-In. SP
33 cfm
Green Certification or Other Recognition
ENERGY STAR Rated
CFM @ 0.375-In. SP
89 cfm
Motor RPM
2950
CFM @ 0.800-In. SP
25 cfm
CFM @ 0.250-In. SP
106 cfm
Motor Enclosure
Totally Enclosed
Hz
60
CFM @ 0.200-In. SP
110 cfm
Bearing Type
Ball Bearing
Housing Material
Galvanized Steel
CFM @ 0.125-In. SP
123 cfm
CFM @ 0.000-In. SP
135
CFM @ 0.400-In. SP
83 cfm
CFM @ 0.500-In. SP
69 cfm
Motor Output Power
20 W
Maximum Inlet Air Temperature
140 Degrees F
Speed Control Included
No
Application
General Purpose
Nameplate Voltage
120V AC
Motor IP Rating
IP44
Airflow @ 0.000 in SP
135 cfm
Motor Speed
2,950 RPM
Speed Controllable
Yes
Mounting Orientation
Horizontal or Vertical
High-Efficiency Motor
No
For Fan Type
Centrifugal Duct Fan

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 135 cfm, Duct Diameter 4 in, Motor Output Power 20 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 8 1/2 in, Overall Height 10 1/2 in, Overall Width 7 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,950 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No
