Shop FANTECH

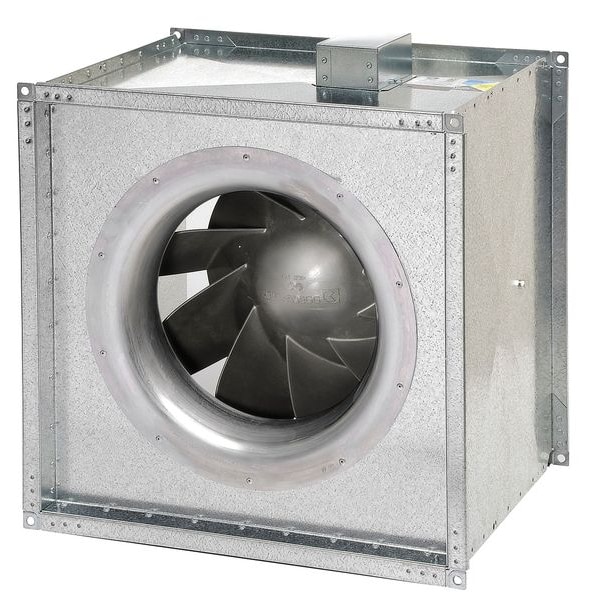

Inline Duct Blower, 120V, 5223 CFM

  • Mfr # 498358

  • Zoro # G5978104

product price:
$
2,747.99
/ea
Additional $285.00 delivery surcharge applies per item.
See details

Key Features

Wheel Dia. (In.)
18 29/50 in
Voltage
120
Motor HP
2 hp
Application
Beauty Salons, General Application Examples Include Commercial Structures Such as Offices, Hospitals, Multi-Family Multi-Use Buildings, Veterinary Clinics
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
498358
Zoro #
G5978104
UPC #
650737562151
Country of Origin
Germany

Dimensions

Wheel Dia. (In.)
18 29/50 in
Outlet Width (In.)
21 1/2 in
Width (In.)
21 1/2 in
Outlet Height (In.)
21 1/2 in
Dimension A (In.)
21 1/2 in
Outlet Dia. (In.)
22 in
Height (In.)
21 1/2 in
Inlet Dia. (In.)
22 in
Dimension C (In.)
19 in
Inlet Width (In.)
21 1/2 in
Max. Depth (In.)
19 in
Inlet Height (In.)
21 1/2 in
Overall Height
21 1/2 in
Overall Width
21 1/2 in
Outlet Duct Connection Width
21 1/2 in
Outlet Duct Connection Height
21 1/2 in
Wheel Diameter
18 1/2 in
Inlet Diameter
22 in
Overall Depth
19 in
Manufacturer Warranty Length
5 yr
Outlet Diameter
22 in

Details

Voltage
120
Motor HP
2 hp
Application
Beauty Salons, General Application Examples Include Commercial Structures Such as Offices, Hospitals, Multi-Family Multi-Use Buildings, Veterinary Clinics
Hz
60
Phase
1
CFM @ 0.250-In. SP
4918
Item
In-Line Duct Blower
Type
Centrifugal
CFM @ 2.000-In. SP
1308
CFM @ 1.000-In. SP
3865
CFM @ 1.250-In. SP
3337
CFM @ 2.500-In. SP
235
CFM @ 0.750-In. SP
4282
Housing Material
Steel
CFM @ 0.000-In. SP
5223
Max. Inlet Temp. (Deg. F)
140 Degrees F
Full Load Amps
15 A
Wheel Material
Aluminum
CFM @ 0.500-In. SP
4605
Agency Compliance
AMCA, cULus
Drive Type
Direct Drive
CFM @ 1.500-In. SP
2716
Motor RPM
1600
Blower RPM
1600
CFM @ 0.375-In. SP
4766
Motor Type
External Rotor
Motor Enclosure
Totally Enclosed
CFM @ 0.125-In. SP
5070
Wheel Type
Mixed Flow
Includes
Fan Bracket
Standards
AMCA Certified, UL Listed
Features
Mixed-Flow Impeller Enabling High Static Pressure
Bearing Type
Self-Lubricating Ball
Nameplate Voltage
115V AC
Maximum Fan Speed
1,576 RPM
Airflow @ 0.000 in SP
4,970 cfm
Airflow @ 2.000 in SP
1,200 cfm
Motor Insulation Class
F
Electrical Connection
Pre-Wired Terminal Strip Connections
Blower Shape
Square
Resistance Properties
Corrosion Resistant
For Ventilation Type
Exhaust, Supply
Discharge Position
Cross-Sectional Discharge
Motor Speed
1,600 RPM
Airflow @ 1.000 in SP
3,780 cfm
Airflow @ 1.500 in SP
2,630 cfm
Housing Material Finish
Galvanized
Market
Commercial
Includes Motor
Yes
Motor IP Rating
IP54
Frequency
60 Hz
Maximum Inlet Air Temperature
140 Degrees F
Thermal Overload Protection
Yes
Motor Horsepower
2 hp
Current
11.8 A

Description

In-Line Duct Blower, Wheel Type Mixed Flow, Drive Type Direct Drive, Wheel Diameter 18 1/2 in, Airflow @ 0.000 in SP 4,970 cfm, Airflow @ 1.000 in SP 3,780 cfm, Airflow @ 1.500 in SP 2,630 cfm, Airflow @ 2.000 in SP 1,200 cfm, Maximum Inlet Air Temperature 140 Degrees F, Bearing Type Self-Lubricating Ball, Wheel Material Aluminum, Housing Material Steel, Inlet Diameter 22 in, Nameplate Voltage 115V AC, Phase 1

Restrictions

This item has been restricted from sale in the following states: CA
