  11. Plastic 12"D, 9"H, 11.5"W Inline Duct Fan

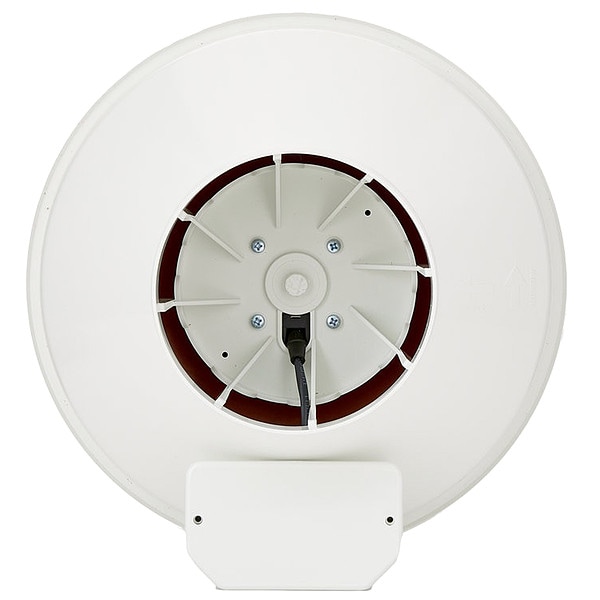

Fantech Plastic 12"D, 9"H, 11.5"W Inline Duct Fan 45026 - main

Plastic 12"D, 9"H, 11.5"W Inline Duct Fan

  • Mfr # 45026

  • Zoro # G2701973

product price: $216.99
/ea
Free Shipping & Returns

Key Features

Max. Amps
0.59 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
7
Flange Width
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45026
Zoro #
G2701973
UPC #
650737011505
Country of Origin
Multiple

Dimensions

Flange Width
7/8 in
Inlet and Outlet Dia.
5 7/8 in
Fits Duct Dia.
6 in
Housing Dia.
11 3/4 in
Length
9 5/8 in
Overall Width
11 1/2 in
Overall Height
9 1/4 in
Duct Diameter
6 in
Overall Diameter
11 1/2 in

Details

Item
In-Line Duct Fan
Max. Amps
0.59 A
Voltage
120v
Includes
Mounting Bracket
Max. Wattage
7
Motor Enclosure
Totally Enclosed
CFM @ 0.400-In. SP
247 cfm
CFM @ 1.500-In. SP
17 cfm
CFM @ 0.000-In. SP
327
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
CFM @ 0.600-In. SP
200 cfm
Green Certification or Other Recognition
ENERGY STAR
CFM @ 0.200-In. SP
320 cfm
Standards
CSA, HVI, UL
Motor RPM
2750
Motor HP
1/10 hp
Number of Speeds
1
Mounting Position
Horizontal or Vertical
CFM @ 1.000-In. SP
118 cfm
Hz
60
Phase
1
CFM @ 0.800-In. SP
163 cfm
Bearing Type
Ball Bearing
Max. Inlet Temp.
140 Degrees F
Housing Material
Plastic
Speed Control
Mfr. No. 48C172
Motor IP Rating
IP44
Speed Controllable
Yes
Motor Output Power
68 W
Nameplate Voltage
120V AC
Maximum Inlet Air Temperature
140 Degrees F
Airflow @ 0.000 in SP
327 cfm
Mounting Orientation
Horizontal or Vertical
High-Efficiency Motor
No
Speed Control Included
No
Application
General Purpose
For Fan Type
Centrifugal Duct Fan
Motor Speed
2,750 RPM

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 327 cfm, Duct Diameter 6 in, Motor Output Power 68 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 11 1/2 in, Overall Height 9 1/4 in, Overall Width 11 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Thermoplastic, Motor Speed 2,750 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Control Included No
