  9. Plastic 12"D, 9"H, 11.5"W Inline Duct Fan

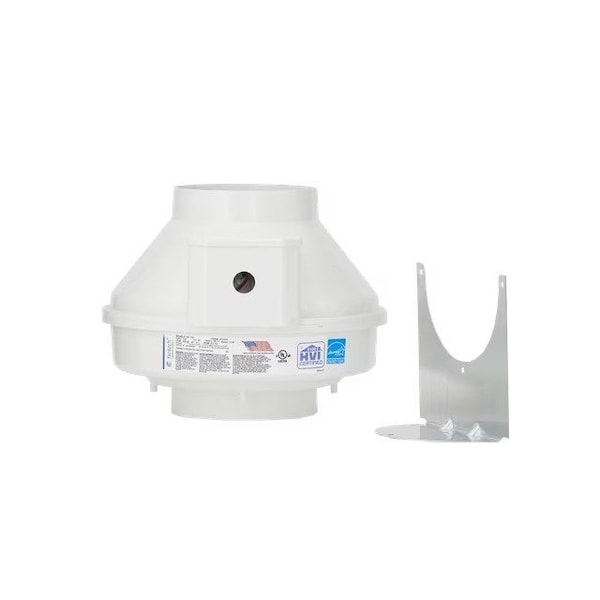

Fantech Plastic 12"D, 9"H, 11.5"W Inline Duct Fan 56203 - main

Plastic 12"D, 9"H, 11.5"W Inline Duct Fan

  • Mfr # 56203

  • Zoro # G4718323

product price: $257.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Plastic
Fits Duct Dia.
6 in
Voltage
120v
Max. Amps
0.99 A
Max. Wattage
99
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
56203
Zoro #
G4718323
UPC #
650737011604
Country of Origin
Germany

Dimensions

Fits Duct Dia.
6 in
Housing Dia.
11 3/4 in
Length
9 5/8 in
Inlet and Outlet Dia.
6 in
Height
9 5/8 in
Overall Diameter
11 1/2 in
Overall Width
11 1/2 in
Duct Diameter
6 in
Overall Height
9 1/4 in

Details

Item
In-Line Duct Fan
Housing Material
Plastic
Voltage
120v
Max. Amps
0.99 A
Max. Wattage
99
Number of Speeds
1
Motor RPM
2750
CFM @ 0.250-In. SP
248 cfm
Green Certification or Other Recognition
ENERGY STAR
CFM @ 0.375-In. SP
235 cfm
Bearing Type
Ball Bearing
CFM @ 0.000-In. SP
345
CFM @ 0.125-In. SP
281 cfm
CFM @ 0.400-In. SP
252 cfm
Hz
60
CFM @ 1.000-In. SP
135 cfm
Includes
Mounting Bracket
Motor Enclosure
External Rotor
CFM @ 0.100-In. SP
289
CFM @ 0.200-In. SP
295 cfm
Phase
1
CFM @ 1.500-In. SP
89 cfm
CFM @ 0.750-In. SP
187 cfm
Speed Control
Yes / WC15 speed control
Max. Inlet Temp.
140 Degrees F
CFM @ 0.500-In. SP
227 cfm
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Standards
CSA, HVI, UL
Housing Finish
Molded Plastic
CFM @ Duct
289 cfm
Mounting Position
Horizontal or Vertical
CFM @ 0.800-In. SP
157 cfm
CFM @ 0.450-In. SP
231 cfm
CFM @ 0.600-In. SP
197 cfm
Speed Control Included
Yes
Maximum Inlet Air Temperature
140 Degrees F
High-Efficiency Motor
No
Airflow @ 0.000 in SP
345 cfm
For Fan Type
Centrifugal Duct Fan
Nameplate Voltage
120V AC
Motor IP Rating
IP44
Mounting Orientation
Horizontal or Vertical
Motor Speed
2,750 RPM
Motor Output Power
116 W
Application
General Purpose
Speed Controllable
Yes

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 345 cfm, Duct Diameter 6 in, Motor Output Power 116 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 11 1/2 in, Overall Height 9 1/4 in, Overall Width 11 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Plastic, Motor Speed 2,750 RPM, Includes Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F, Speed Controllable Yes
