  9. Steel 11"D, 13.9"H, 7.3"W Inline Duct Fan

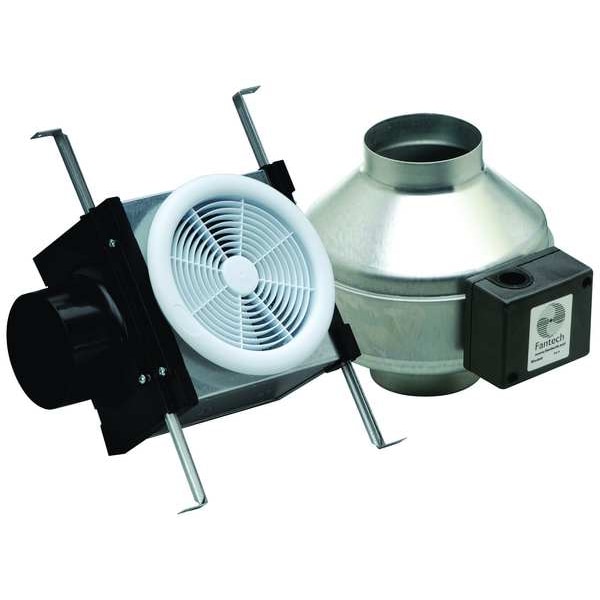

Fantech Steel 11"D, 13.9"H, 7.3"W Inline Duct Fan 45022 - main

Steel 11"D, 13.9"H, 7.3"W Inline Duct Fan

  • Mfr # 45022

  • Zoro # G1911786

product price: $240.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Galvanized Steel
Fits Duct Dia.
6 in
Voltage
120v
Max. Amps
0.6 A
Max. Wattage
66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
45022
Zoro #
G1911786
UPC #
650737405717
Country of Origin
Multiple

Dimensions

Fits Duct Dia.
6 in
Housing Dia.
11 3/8 in
Length
8 in
Flange Width
1 in
Inlet and Outlet Dia.
5 7/8 in
Duct Diameter
6 in
Overall Diameter
11 3/8 in
Overall Width
7 1/4 in
Overall Height
13 7/8 in

Details

Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Max. Amps
0.6 A
Max. Wattage
66
Number of Speeds
1
Motor RPM
2450
CFM @ 0.800-In. SP
91 cfm
Phase
1
Mounting Position
Horizontal or Vertical
CFM @ Duct
190 cfm
Includes
Ceiling Grilles, Mounting Bracket, Grille Housings with Damper
Speed Control
Mfr. No. 48C172
Max. Inlet Temp.
140 Degrees F
Motor Enclosure
Totally Enclosed
Motor HP
1/10 hp
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Bearing Type
Ball Bearing
CFM @ 0.000-In. SP
232
Hz
60
Standards
cULus, HVI, UL
Green Certification or Other Recognition
ENERGY STAR
CFM @ 0.400-In. SP
152 cfm
CFM @ 0.200-In. SP
200 cfm
CFM @ 0.600-In. SP
121 cfm
CFM @ 1.500-In. SP
17 cfm
CFM @ 1.000-In. SP
71 cfm
Motor Speed
2,450 RPM
Motor Output Power
70 W
Mounting Orientation
Horizontal or Vertical
Airflow @ 0.000 in SP
232 cfm
Speed Controllable
Yes
Speed Control Included
No
Nameplate Voltage
120V AC
Maximum Inlet Air Temperature
140 Degrees F
Application
General Purpose
Motor IP Rating
IP44
High-Efficiency Motor
No
For Fan Type
Centrifugal Duct Fan

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 232 cfm, Duct Diameter 6 in, Motor Output Power 70 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 11 3/8 in, Overall Height 13 7/8 in, Overall Width 7 1/4 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,450 RPM, Includes Ceiling Grilles, Mounting Bracket, Grille Housings with Damper
