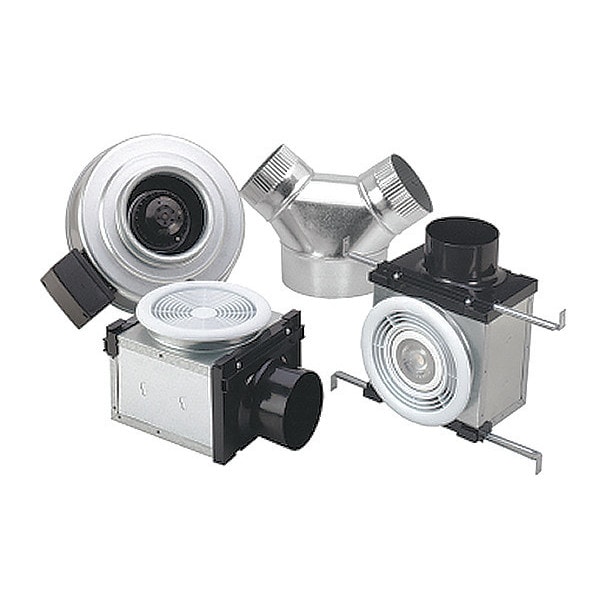

Steel 11"D, 13.9"H, 7.3"W Inline Duct Fan

Mfr # 88445
Zoro # G7420430

433.99

Free Shipping & Returns

Key Features

Housing Material

Galvanized Steel

Fits Duct Dia.

4 in, 6 in

Voltage

120

Max. Amps

0.56 A

Max. Wattage

4620

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 88445
Zoro #: G7420430
UPC #: 650737449476
Country of Origin: Multiple

Dimensions

Fits Duct Dia.: 4 in, 6 in
Housing Dia.: 11 3/8 in
Length: 11 3/8 in
Height: 6 1/4 in
Width: 7 3/16 in
Inlet and Outlet Dia.: 4 in, 6 in
Duct Diameter: 6 in
Overall Width: 7 1/4 in
Overall Height: 13 7/8 in
Overall Diameter: 11 3/8 in

Details

Item: In-Line Duct Fan
Housing Material: Galvanized Steel
Voltage: 120
Max. Amps: 0.56 A
Max. Wattage: 4620
Number of Speeds: 1
Motor RPM: 2680
CFM @ 1.500-In. SP: 53 cfm
CFM @ 0.800-In. SP: 160 cfm
Standards: cULus, HVI, UL
CFM @ 0.125-In. SP: 283 cfm
CFM @ 0.000-In. SP: 300
CFM @ 0.200-In. SP: 260 cfm
Green Certification or Other Recognition: ENERGY STAR(R) Certified
CFM @ 0.500-In. SP: 215 cfm
CFM @ 0.600-In. SP: 196 cfm
Bearing Type: Sealed Ball Bearing
CFM @ 1.200-In. SP: 103 cfm
CFM @ 1.000-In. SP: 130 cfm
Max. Inlet Temp.: 140 Degrees F
CFM @ 0.750-In. SP: 170 cfm
CFM @ 0.250-In. SP: 255 cfm
CFM @ 0.100-In. SP: 290
Phase: 1
Includes: 10W LED, Grille Trim, Lighted Grille Can, Mounting Hardware, Unlit Grille Can, Wye Branch
Housing Finish: Galvanized Steel
CFM @ 0.375-In. SP: 235 cfm
CFM @ 0.400-In. SP: 229 cfm
CFM @ Duct: 300 cfm
Mounting Position: Horizontal or Vertical
Hz: 60 Hz
CFM @ 0.450-In. SP: 224 cfm
Motor Enclosure: IP44
Mounting Orientation: Horizontal or Vertical
Speed Control Included: No
Nameplate Voltage: 120V AC
High-Efficiency Motor: No
Motor Output Power: 70 W
Motor IP Rating: IP44
Airflow @ 0.000 in SP: 300 cfm
Maximum Inlet Air Temperature: 140 Degrees F
Motor Speed: 2,680 RPM
For Fan Type: Centrifugal Duct Fan
Speed Controllable: Yes
Application: General Purpose

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 300 cfm, Duct Diameter 6 in, Motor Output Power 70 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 11 3/8 in, Overall Height 13 7/8 in, Overall Width 7 1/4 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,680 RPM, Includes 10W LED, Grille Trim, Lighted Grille Can, Mounting Hardware, Unlit Grille Can, Wye Branch
