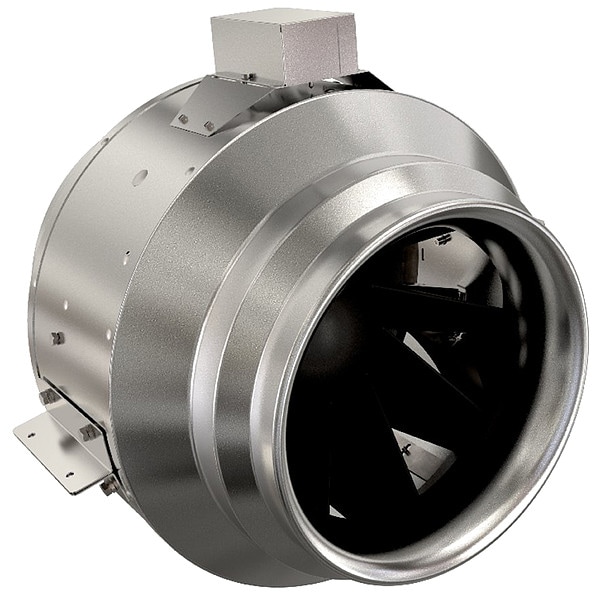

Steel 14"D, 17.3"H, 17.9"W Inline Duct Fan

  • Mfr # 498332

  • Zoro # G3073813

product price:
$
1,050.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Galvanized Steel
Fits Duct Dia.
14 in
Voltage
120v
Max. Amps
4.76 A
Max. Wattage
495
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
498332
Zoro #
G3073813
UPC #
650737091408
Country of Origin
Germany

Dimensions

Fits Duct Dia.
14 in
Housing Dia.
17 7/8 in
Length
17 1/4 in
Inlet and Outlet Dia.
14 in
Flange Width
1 5/8 in
Duct Diameter
14 in
Overall Width
17 7/8 in
Overall Height
17 1/4 in
Overall Diameter
17 7/8 in

Details

Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Max. Amps
4.76 A
Max. Wattage
495
Number of Speeds
1
Motor RPM
1700
Mounting Position
Horizontal or Vertical
CFM @ Duct
2156 cfm
Standards
AMCA, cULus
CFM @ 0.125-In. SP
2061 cfm
CFM @ 0.250-In. SP
1965 cfm
CFM @ 0.500-In. SP
1764 cfm
Max. Inlet Temp.
140 Degrees F
Motor Enclosure
Totally Enclosed
CFM @ 0.750-In. SP
1520 cfm
CFM @ 1.000-In. SP
1193 cfm
Hz
60
Housing Finish
Galvanized Steel
Includes
Mounting Brackets
Speed Control
Mfr. No. 48C172
CFM @ 0.000-In. SP
2156
Phase
1
Bearing Type
Sealed Ball Bearing
CFM @ 0.375-In. SP
1868 cfm
For Fan Type
Centrifugal Duct Fan
High-Efficiency Motor
No
Nameplate Voltage
120V AC
Motor Speed
1,700 RPM
Speed Controllable
Yes
Speed Control Included
No
Airflow @ 0.000 in SP
2,156 cfm
Mounting Orientation
Horizontal or Vertical
Maximum Inlet Air Temperature
140 Degrees F
Motor Output Power
444 W
Application
General Purpose
Motor IP Rating
IP54

Description

In-Line Duct Fan, For Fan Type Centrifugal Duct Fan, Airflow @ 0.000 in SP 2,156 cfm, Duct Diameter 14 in, Motor Output Power 444 W, Motor IP Rating IP54, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 17 7/8 in, Overall Height 17 1/4 in, Overall Width 17 7/8 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 1,700 RPM, Includes Mounting Brackets, Maximum Inlet Air Temperature 140 Degrees F
