Fasco

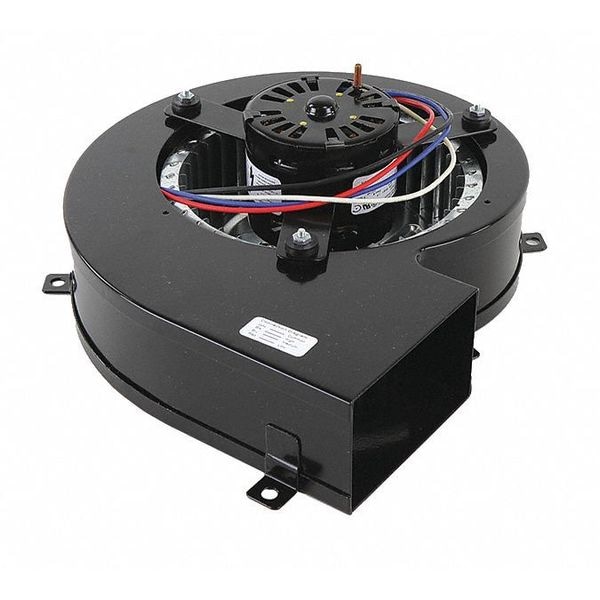

Blower Assembly, 115V, 3 SPDT

product price: $199.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Phase 1
  • Standards CSA Certified, UL Listed
  • Frequency 60 Hz
  • Features Open Air Over
  • Fits Brand Fasco
See all product information

Product Information

Dimensions

Wheel Diameter 3 1/4 in
Overall Depth 7 1/16 in
Inlet Diameter 4 1/4 in
Overall Width 10 5/16 in
Outlet Width 2 1/2 in
Overall Height 11 1/8 in
Outlet Height 4 1/8 in

Details

Item Blower Assembly, 115V, 3 SPDT
Phase 1
Standards CSA Certified, UL Listed
Frequency 60 Hz
Features Open Air Over
Fits Brand Fasco
Number of Discharge Positions 1
Speed Controllable Variable Speed
Includes Drive Package Yes
Airflow @ 0.100 in SP 180 cfm
Motor Horsepower 1/22 hp
Motor Type Shaded Pole
Mounting Orientation Horizontal
Flange Type Non-Flanged
Drive Type Direct Drive
Assembly Assembled
Airflow @ 0.000 in SP 180 cfm
Maximum Fan Speed 1,500 RPM
Number of Speeds 3
Motor Insulation Class B
Motor Speed 1,500 RPM
Maximum Static Pressure 7/8 in wc
Housing Material Steel
Current 2 A
Includes Motor Yes
Maximum Ambient Temperature 104 Degrees F
Bearing Type Sleeve
Nameplate Voltage 115V AC
Thermal Overload Protection Yes
Outlet Shape Rectangular
Airflow @ 0.500 in SP 150 cfm
Number of Inlets 1
Motor Enclosure Open Air-Over
Discharge Position Bottom Horizontal
Airflow @ 0.250 in SP 170 cfm
Rotation CW
Wheel Material Aluminum
Electrical Connection 14 to 12 in Leads with Strip
Airflow @ 0.400 in SP 165 cfm
OEM Replacement No

Description

Blower Assembly, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/4 in, Airflow @ 0.000 in SP 180 cfm, Airflow @ 0.100 in SP 180 cfm, Airflow @ 0.250 in SP 170 cfm, Airflow @ 0.400 in SP 165 cfm, Airflow @ 0.500 in SP 150 cfm
