  9. Draft Inducer Blower, 115, Steel, 8 5/8 in W, 7 1/2 in H
Fasco Draft Inducer Blower, 115, Steel, 8 5/8 in W, 7 1/2 in H A090 - main

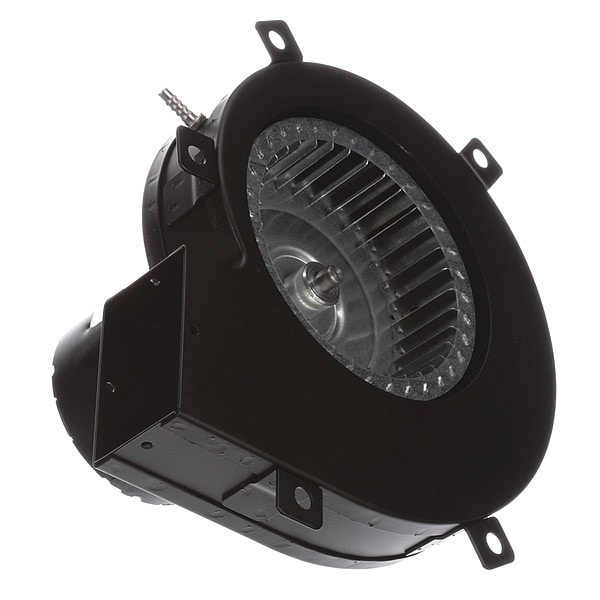

Draft Inducer Blower, 115, Steel, 8 5/8 in W, 7 1/2 in H

  • Mfr # A090

  • Zoro # G7537537

product price: $161.99
/ea
Free Shipping & Returns

Key Features

Type
Replacement
Voltage
115
Depth (In.)
5 7/8 in
HP
1/50 hp
Construction Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A090
Zoro #
G7537537
UPC #
663001021025
Country of Origin
United States

Dimensions

Depth (In.)
5 7/8 in
Height (In.)
7 1/2 in
Vent Pipe Dia. (In.)
3.3"
Width (In.)
8 5/8 in
Inlet Diameter
4 5/8 in
Outlet Width
1 5/8 in
Overall Width
8 5/8 in
Outlet Height
2 5/8 in
Overall Depth
5 7/8 in
Overall Height
7 1/2 in
Wheel Diameter
4 1/2 in

Details

Item
Draft Inducer Blower
Type
Replacement
Voltage
115
HP
1/50 hp
Construction Material
Steel
Amps
1.1A
Includes
(1)22" Lead with Stripped ends, (1)31" Lead with Stripped ends
Remarks
Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions
For Use With Mfr. Model Number
70-21496-01
Fits Brand
Rheem
Replaces
Alltemp (Rotom) FB-RFB090, Fasco 70215239, 70219921, Rheem 70-21496-01
Agency Compliance
CSA, UL
Application
Furnaces
Watts
90 W
Number of Speeds
1
RPM
3000
Bearings
Sleeve
Enclosure
Open
Class
B
Overload Protection
Thermal
CFM @ 1.40-In. SP
54
CFM @ 1.000-In. SP
71
CFM @ 0.700-In. SP
80
Motor Type
Shaded Pole
Current
1.1 A
Wheel Type
Forward-Curved
Outlet Shape
Rectangular
Maximum Inlet Air Temperature
40 Degrees C
Blower Type
Induced Draft Blower
Compatible with Brand
Rheem, RUUD
Standards
CSA Certified, UL Listed
Phase
1
Maximum Motor Speed
3,000 RPM
Replacement For Manufacturer Model Number
70-21496-01, 70215239, 70219921, FB-RFB090
Airflow @ 0.000 in SP
92 cfm
Maximum Static Pressure
1 5/8 in wc
Wheel Material
Steel
For Appliance Type
Gas Furnaces
Maximum Motor Horsepower
1/50 hp
OEM Replacement
Yes
Frequency
50/60 Hz
For Fuel Type
Natural Gas
Electrical Connection
Wire Leads
Maximum Fan Speed
3,400 RPM
Housing Material
Steel
Power Consumption
90 W
For Use With
70-21496-01, Rheem
Motor Insulation Class
B
Nameplate Voltage
115V AC
Includes Motor
Yes

Description

Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 4 5/8 in, Outlet Diameter Not Applicable, Compatible with Brand Rheem, RUUD, Replacement For Manufacturer Model Number 70-21496-01, 70215239, 70219921, FB-RFB090, Nameplate Voltage 115V AC, Phase 1, Current 1.1 A, Frequency 50/60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM
