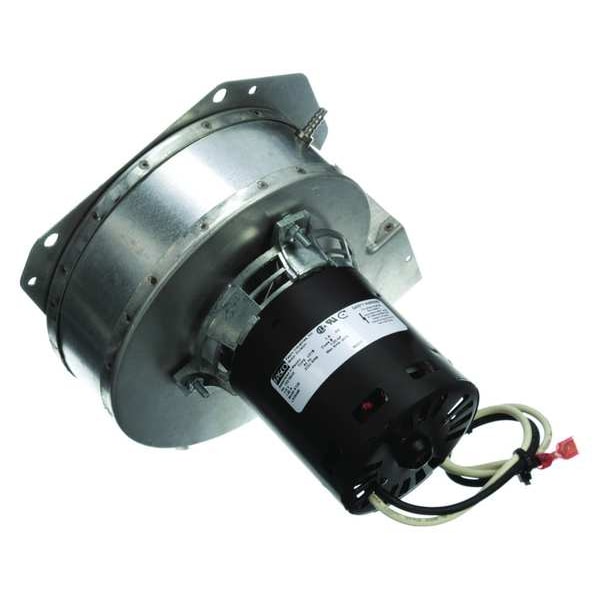

  5. Induced Draft Furnace Blower, 115, Aluminum Steel, 8 3/8 in W, 7 1/2 in H
Fasco Induced Draft Furnace Blower, 115, Aluminum Steel, 8 3/8 in W, 7 1/2 in H A129 - main

Induced Draft Furnace Blower, 115, Aluminum Steel, 8 3/8 in W, 7 1/2 in H

  • Mfr # A129

  • Zoro # G7548213

product price:  $252.99
/ea
Free Shipping & Returns

Key Features

Type
Replacement
Voltage
115
Depth (In.)
7 in
HP
1/20 hp
Construction Material
Aluminum Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A129
Zoro #
G7548213
UPC #
663001021087
Country of Origin
Mexico

Dimensions

Depth (In.)
7 in
Height (In.)
7 1/2 in
Width (In.)
8 3/8 in
Overall Width
8 3/8 in
Inlet Diameter
4 in
Outlet Width
2 1/8 in
Overall Height
7 1/2 in
Outlet Height
2 5/8 in
Wheel Diameter
4 5/8 in
Overall Depth
7 in

Details

Item
Induced Draft Furnace Blower
Type
Replacement
Voltage
115
HP
1/20 hp
Construction Material
Aluminum Steel
Amps
1.95
Remarks
Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions
For Use With Mfr. Model Number
11009001, 117521-00
Fits Brand
Amana
Replaces
Alltemp (Rotom) R7-RFB129, Amana 11009001, Fasco 70219064, 70219924
Agency Compliance
CSA, UL
Application
Furnaces
Watts
155 W
CFM @ 0.000-In. SP
150
CFM @ 0.500-In. SP
145
CFM @ 1.000-In. SP
13 4
CFM @ 0.700-In. SP
138
CFM @ 1.40-In. SP
125
For Appliance Type
Gas Furnaces
Maximum Static Pressure
3 3/8 in wc
Blower Type
Induced Draft Blower
Motor Type
Shaded Pole
Motor Insulation Class
B
Outlet Shape
Rectangular
For Use With
11009001, 117521-00, Amana
Maximum Motor Horsepower
1/20 hp
Power Consumption
155 W
Wheel Type
Forward-Curved
Maximum Motor Speed
3,250 RPM
Maximum Fan Speed
3,400 RPM
Electrical Connection
Wire Leads
Wheel Material
Steel
Current
1.95 A
Frequency
60 Hz
Nameplate Voltage
115V AC
Airflow @ 0.000 in SP
154 cfm
For Fuel Type
Natural Gas
Includes Motor
Yes
Standards
CSA Certified, UL Listed
Replacement For Manufacturer Model Number
11009001, 70219064, 70219924, R7-RFB129
Maximum Inlet Air Temperature
40 Degrees C
Compatible with Brand
Amana
Housing Material
Aluminum Steel
Phase
1
OEM Replacement
Yes

Description

Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Gas Furnaces, Inlet Diameter 4 in, Outlet Diameter Not Applicable, Compatible with Brand Amana, Replacement For Manufacturer Model Number 11009001, 70219064, 70219924, R7-RFB129, Nameplate Voltage 115V AC, Phase 1, Current 1.95 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Fan Speed 3,400 RPM, Maximum Motor Speed 3,250 RPM
