Motor, 1/10 HP, OEM Replacement Brand: ILG Replacement For: 7108-2171

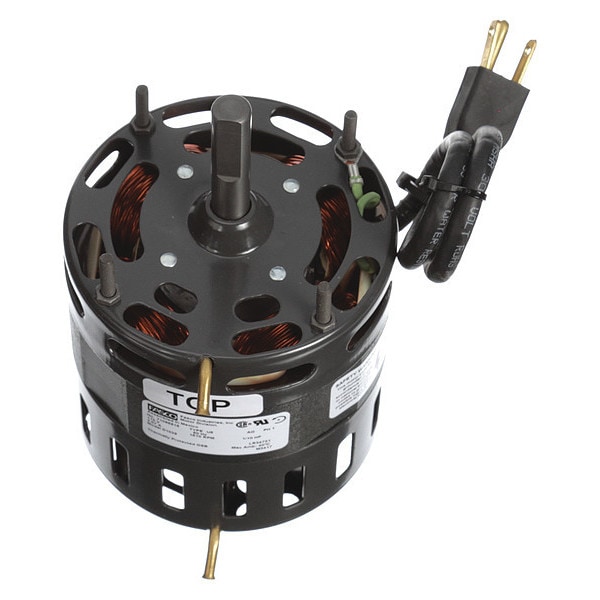

Fasco Motor,  1/10 HP,  OEM Replacement Brand: ILG Replacement For: 7108-2171 D1039
Hover or click to zoom Tap to zoom
$274.95
  • Frame: 4.4
  • HP: 1/10 HP
  • Item: Motor
See full product details
This item ships free.

Total: $274.95

Fasco #D1039 Specifications

  • Frame: 4.4
  • HP: 1/10 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Shaded Pole
  • Motor Enclosure Design: Open Air-Over
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Counterclockwise Shaft End
  • Motor Sub Application: Condenser Fan
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1610 rpm
  • No. of Speeds: 1
  • Number of Shafts: 1
  • OEM Replacement Brand: ILG
  • Phase: 1
  • RPM Range: 1601-1700
  • Shaft Dia.: 1/2"
  • Shaft Length: 2-3/8"
  • Voltage: 115V
  • Motor Bearings: Sleeve
  • Replacement For: 7108-2171
  • Ins. Class: A
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 4 1/2 in
  • Duty: Air Over
  • Bolt Circle Dia.: 3-7/8"
  • Full Load Amps: 3.07A
  • Body Dia.: 4-13/32"
  • Capacitor Required: No
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 7.59"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Flat
  • Stud Size: #10-32
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Fans and Blowers
  • Mounting Stud Pattern: 4" x 4"
  • Voltage Compatibility: 115V AC, 120V AC
  • Weight: 8 lb
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/10 HP, Nameplate RPM 1,610, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.1, 4.4 in Frame, OEM Replacement Brand ILG, Replacement For 7108-2171, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
