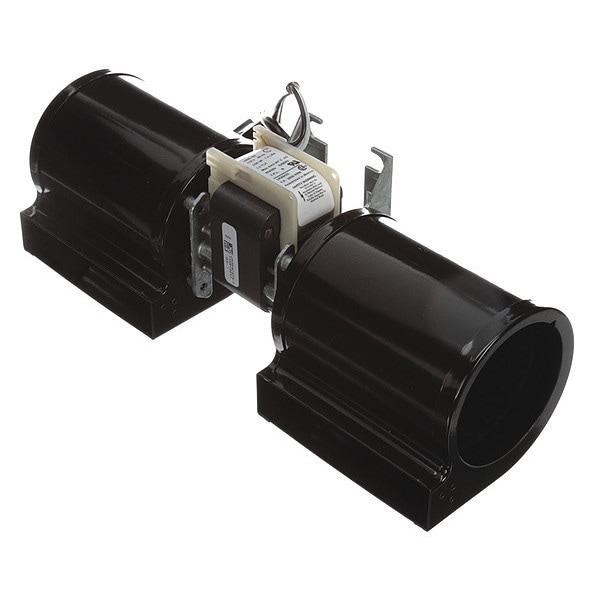

Fasco Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct Drive, Steel 1 Speed A133 - main

Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # A133

  • Zoro # G2031830

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Full Load Amps
1.20
Housing Material
Steel
Includes
Grommet, Spacer
Inlet Dia.
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A133
Zoro #
G2031830
UPC #
815585026013
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 in
Overall Height
4 in
Overall Width
4 1/4 in
Blower Wheel Diameter
3 in
Lead Length
26 in
Blower Wheel Width
3 3/4 in
Outlet Height
1 in
Overall Depth
13 in
Outlet Width
4 3/4 in
Wheel Diameter
3 in
Wheel Width
3 3/4 in
Inlet Diameter
3 in

Details

Drive Type
Direct Drive
Full Load Amps
1.20
Housing Material
Steel
Includes
Grommet, Spacer
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Mounting Position
All Position
Max. Inlet Temp.
104 Degrees F
RPM
3000
Motor Enclosure
Open
Item
OEM Blower
Housing Finish
Paint
Hz
60
Motor Insulation
Class B
Housing Color
Black
Bearing Type
Sleeve
Max. Ambient Temp.
104 Degrees F
Wheel Type
Forward-Curved
Agency Compliance
CSA Compliant, UL Recognized
Replaces
20093603/B, 7058-0280
Thermal Overload Protection
Yes
Flange Type
Non-Flanged
Maximum Fan Speed
3,000 RPM
Housing Material Finish
Painted
Nameplate Voltage
115V AC
Maximum Ambient Temperature
104 Degrees F
Maximum Static Pressure
1/2 in wc
Includes Drive Package
Yes
Maximum Inlet Air Temperature
104 Degrees F
Outlet Shape
Rectangular
Airflow @ 0.000 in SP
163 cfm
Replacement For
20093603/B, 7058-0280
Mount Type
All Position
Airflow @ 0.250 in SP
130 cfm
Motor Horsepower
1/30 hp
OEM Replacement
No
Includes Motor
Yes
Motor Insulation Class
B
Motor Speed
3,000 RPM
Number of Discharge Positions
1
Frequency
60 Hz
Standards
CSA Certified, UL Listed
Assembly
Assembled
Number of Inlets
2
Features
C-Frame, Open Air Over
Motor Type
Shaded Pole
Discharge Position
Horizontal
Current
1.2 A
Electrical Connection
Power Cord and Plug
Wheel Material
Plastic
Rotation
CW
Voltage
115VAC

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 in, Airflow @ 0.000 in SP 163 cfm, Airflow @ 0.250 in SP 130 cfm
