  9. Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct Drive, Steel 2 Speed

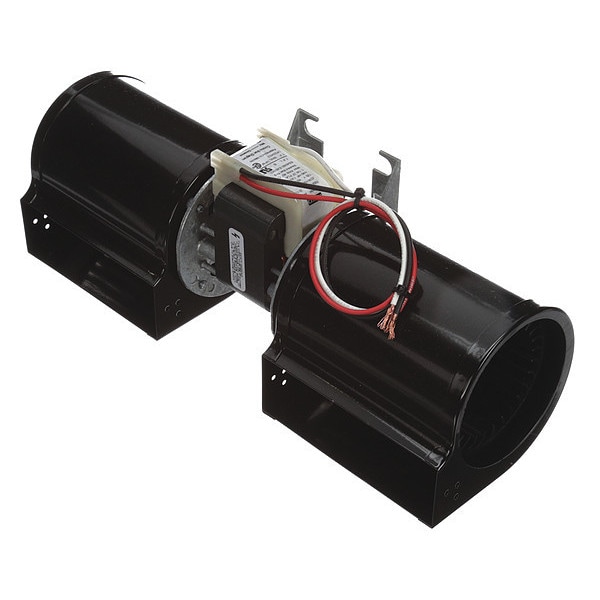

Fasco Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct Drive, Steel 2 Speed A120 - main

Rectangular OEM Blower, 3000 RPM, 1 Phase, Direct Drive, Steel 2 Speed

  • Mfr # A120

  • Zoro # G2031919

product price: $175.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Full Load Amps
1.14/0.37
Housing Material
Steel
Includes
Grommet, Spacer
Inlet Dia.
3 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A120
Zoro #
G2031919
UPC #
815585025818
Country of Origin
Mexico

Dimensions

Inlet Dia.
3 1/4 in
Overall Height
4 in
Overall Width
4 1/4 in
Blower Wheel Diameter
3 1/8 in
Outlet Width
4 3/4 in
Lead Length
12 in
Blower Wheel Width
3 3/4 in
Overall Depth
13 in
Outlet Height
1 1/2 in
Wheel Diameter
3 1/8 in
Inlet Diameter
3 1/4 in
Wheel Width
3 3/4 in

Details

Drive Type
Direct Drive
Full Load Amps
1.14/0.37
Housing Material
Steel
Includes
Grommet, Spacer
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Shaded Pole
Blower Voltage
120V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Housing Color
Black
Housing Finish
Paint
Replaces
Mfr. Model No. J238-1344
Hz
60
Motor Enclosure
Open
Mounting Position
All Position
Wheel Type
Forward-Curved
RPM
3000
Max. Ambient Temp.
104 Degrees F
Bearing Type
Ball
Agency Compliance
CSA Compliant, UL Recognized
Max. Inlet Temp.
104 Degrees F
Item
OEM Blower
Motor Insulation
Class B
Motor Speed
3,000 RPM
Mount Type
All Position
Airflow @ 0.250 in SP
146 cfm
Motor Type
Shaded Pole
Nameplate Voltage
120V AC
Features
C-Frame, Open Air Over
Number of Inlets
2
Includes Motor
Yes
Current
1.14 A
Flange Type
Non-Flanged
Housing Material Finish
Painted
Assembly
Assembled
Frequency
60 Hz
Replacement For
J238-1344
Maximum Inlet Air Temperature
104 Degrees F
Electrical Connection
Wire Leads
Outlet Shape
Rectangular
Motor Insulation Class
B
Number of Discharge Positions
1
Maximum Ambient Temperature
104 Degrees F
Standards
CSA Certified, UL Listed
OEM Replacement
No
Discharge Position
Horizontal
Maximum Static Pressure
1/2 in wc
Airflow @ 0.000 in SP
175 cfm
Includes Drive Package
Yes
Thermal Overload Protection
Yes
Motor Horsepower
1/40 hp
Maximum Fan Speed
3,000 RPM
Wheel Material
Plastic
Rotation
CW
Voltage
120VAC

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 3 1/8 in, Airflow @ 0.000 in SP 175 cfm, Airflow @ 0.250 in SP 146 cfm
