  9. Round OEM Blower, 3200 RPM, 1 Phase, Direct, Steel 1 Speed

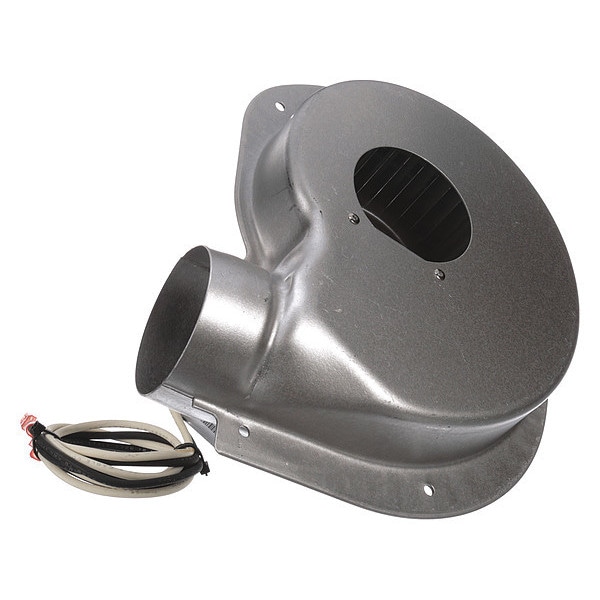

Fasco Round OEM Blower, 3200 RPM, 1 Phase, Direct, Steel 1 Speed A234 - main

Round OEM Blower, 3200 RPM, 1 Phase, Direct, Steel 1 Speed

  • Mfr # A234

  • Zoro # G2031185

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.50
Housing Material
Steel
Number of Speeds
1
Overall Height
10 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A234
Zoro #
G2031185
UPC #
815585026006
Country of Origin
Mexico

Dimensions

Overall Height
10 5/8 in
Overall Width
8 5/8 in
Blower Wheel Diameter
4 3/4 in
Blower Wheel Width
1 5/8 in
Outlet Dia.
3 in
Lead Length
32 in
Overall Depth
6 7/8 in
Outlet Diameter
3 in
Wheel Diameter
4 5/8 in
Inlet Diameter
2 3/4 in

Details

Drive Type
Direct
Full Load Amps
0.50
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
208/230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
RPM
3200
Motor Enclosure
Open
Item
OEM Blower
Max. Inlet Temp.
400 Degrees F
Bearing Type
Ball
Housing Finish
Metal
Max. Ambient Temp.
104 Degrees F
Housing Color
Natural
Hz
60
Agency Compliance
CSA Compliant, UL Recognized
Wheel Type
Forward-Curved
Replaces
Mfr. Model No. 102529, 026-39532-000, 7062-5155, 7062-5267
Mounting Position
Shaft Vertical Down
Motor Insulation
Class B
Maximum Motor Speed
3,200 RPM
Application
Furnaces
Electrical Connection
Wire Leads
Motor Insulation Class
B
Wheel Material
Steel
Maximum Inlet Air Temperature
400 Degrees F
Standards
CSA Certified, UL Listed
OEM Replacement
Yes
Airflow @ 0.000 in SP
165 cfm
Current
0.5 A
Maximum Fan Speed
3,200 RPM
Nameplate Voltage
208-230V AC
Frequency
60 Hz
Maximum Static Pressure
3 3/4 in wc
Outlet Shape
Round
Compatible with Brand
York
Mounting Orientation
Vertical
Motor Type
Permanent Split Capacitor
Replacement For Manufacturer Model Number
102529, 7062-5155
Voltage
208/230VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 3/4 in, Outlet Diameter 3 in, Compatible with Brand York, Replacement For Manufacturer Model Number 102529, 7062-5155, Nameplate Voltage 208-230V AC, Phase 1, Current 0.5 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,200 RPM, Maximum Motor Speed 3,200 RPM, Maximum Inlet Air Temperature 400 Degrees F, Maximum Static Pressure 3 3/4 in wc
