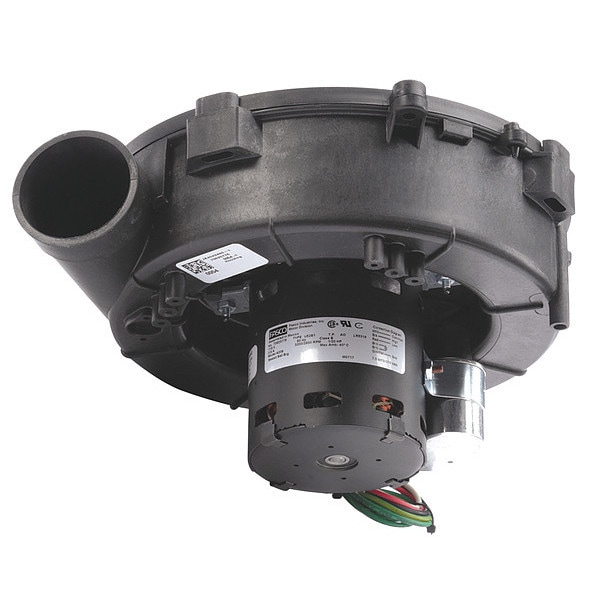

Fasco Round OEM Blower, 3200/2800 RPM, 1 Phase, Direct, Plastic 2 Speed A209 - main

Round OEM Blower, 3200/2800 RPM, 1 Phase, Direct, Plastic 2 Speed

  • Mfr # A209

  • Zoro # G2031359

product price: $330.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct
Full Load Amps
0.80
Housing Material
Plastic
Inlet Dia.
2 in
Number of Speeds
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A209
Zoro #
G2031359
UPC #
815585025436
Country of Origin
Mexico

Dimensions

Inlet Dia.
2 in
Overall Height
9 1/2 in
Overall Width
9 1/2 in
Blower Wheel Diameter
7 1/2 in
Blower Wheel Width
1 5/16 in
Overall Depth
6 in
Lead Length
6 in
Wheel Diameter
7 1/2 in
Outlet Diameter
2 3/8 in
Inlet Diameter
2 in

Details

Drive Type
Direct
Full Load Amps
0.80
Housing Material
Plastic
Number of Speeds
2
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Item
OEM Blower
Mounting Position
All Position
Housing Color
Black
Agency Compliance
CSA Compliant, UL Recognized
Wheel Type
Backward-Curved
Replaces
Mfr. Model No. 7062-5441, 38M5001
Max. Inlet Temp.
180 Degrees F
Hz
60
Motor Enclosure
Open
Motor Insulation
Class B
Bearing Type
Ball
Max. Ambient Temp.
104 Degrees F
RPM
3200/2800
Nameplate Voltage
115V AC
OEM Replacement
Yes
Electrical Connection
Wire Leads
Maximum Fan Speed
3,200 RPM
Outlet Shape
Round
Motor Insulation Class
B
Wheel Material
Polypropylene
Frequency
60 Hz
Current
0.8 A
Standards
CSA Certified, UL Listed
Compatible with Brand
Lennox
Maximum Motor Speed
3,200 RPM
Motor Type
Permanent Split Capacitor
Application
Furnaces
Airflow @ 0.000 in SP
77 cfm
Maximum Static Pressure
3 1/2 in wc
Maximum Inlet Air Temperature
180 Degrees F
Replacement For Manufacturer Model Number
38M5001, 7062-5441
Voltage
115VAC

Description

OEM Blower, Application Furnaces, Inlet Diameter 2 in, Outlet Diameter 2 3/8 in, Compatible with Brand Lennox, Replacement For Manufacturer Model Number 38M5001, 7062-5441, Nameplate Voltage 115V AC, Phase 1, Current 0.8 A, Frequency 60 Hz, Electrical Connection Wire Leads, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Fan Speed 3,200 RPM, Maximum Motor Speed 3,200 RPM, Maximum Inlet Air Temperature 180 Degrees F, Maximum Static Pressure 3 1/2 in wc
